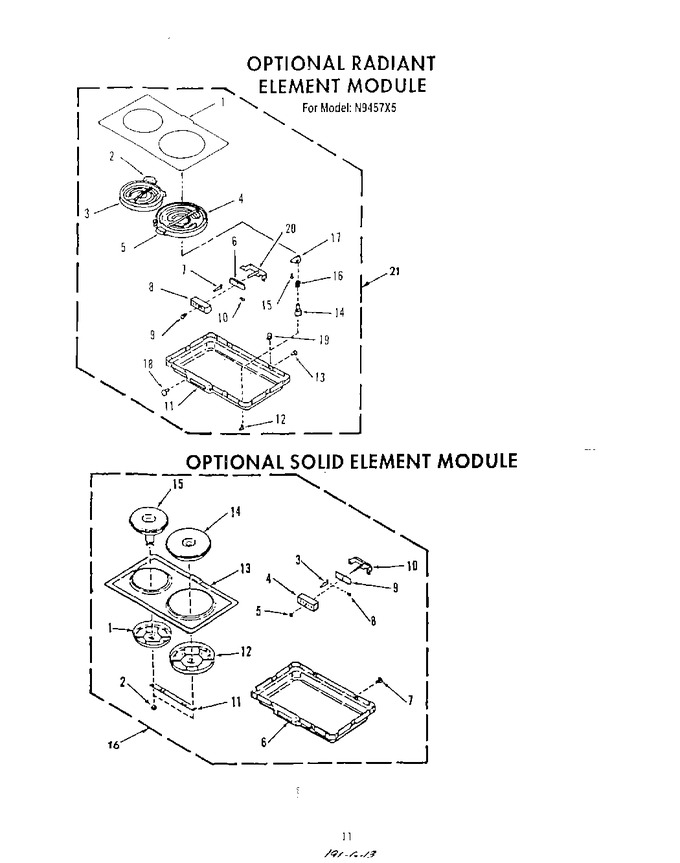

09 - Radiant Element , Solid Element


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335942		Clamp		Appelez-nous	-
1	4343218		Main Top, Glass		Appelez-nous	-
2	4343220		Thermal Switch (large)		Appelez-nous	-
2	4343219		Thermal Switch (small)		Appelez-nous	-
2	4336026		Nut, Mount. (2)		Appelez-nous	-
3	4343221		Radiant Element, Small		Appelez-nous	-
3	4330875		Pin, Terminal (4)		Appelez-nous	-
4	4335910		Block, Terminal		Appelez-nous	-
4	W10823710		Radiant Element, Large   (Replaces: 4343210)			Immediately	$ 346.93
5	4343211		Thermal Switch		Appelez-nous	-
5	4323399		Speed Nut		Appelez-nous	-
6	4336604		Pan-module		Appelez-nous	-
6	4330873		Insulator		Appelez-nous	-
7	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
7	4330875		Terminal Pin		Appelez-nous	-
8	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
8	4335910		Terminal Block		Appelez-nous	-
9	4323399		Speed Nut		Appelez-nous	-
9	4330873		Insulator		Appelez-nous	-
10	4335944		Bracket		Appelez-nous	-
10	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
11	4343212		Pan, Module		Appelez-nous	-
11	4337575		Element Strap		Appelez-nous	-
12	4335941		Element Clamp		Appelez-nous	-
12	4333569		Screw, No.8-32 X 1/4		Appelez-nous	-
13	4335938		Main Top (chrome)		Appelez-nous	-
13	4336457		Main Top (almond)		Appelez-nous	-
13	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
14	4342833		Spacer		Appelez-nous	-
14	WP3147132		Large Element   (Replaces: 4335940)				$ 286.33
15	WP3147131		Small Element   (Replaces: 4335939)				$ 257.00
15	4324445		Screw, No.6 X 3/8		Appelez-nous	-
16	4347213		Complete Module (almond)		Appelez-nous	-
16	4342834		Spring		Appelez-nous	-
16	4347214		Complete Module (chrome)		Appelez-nous	-
17	4342706		Bracket		Appelez-nous	-
18	4331822		Screw No.8x5/8		Appelez-nous	-
19	4343213		Speed Nut		Appelez-nous	-
20	4335944		Bracket, Terminal Block		Appelez-nous	-
21	4347215		Module, Complete		Appelez-nous	-
