01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Control Assy


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door And Accessories


06 - Fz Shelves And Lights


07 - Machine Compartment


08 - Ref Door


09 - Ref Shelves, Lights, And Hinges

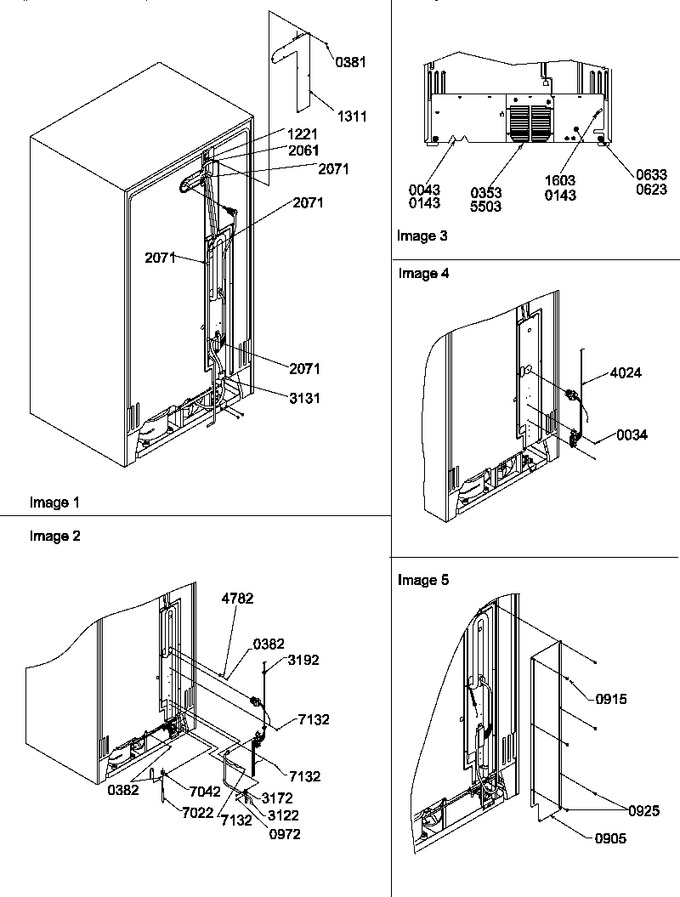

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
43	12041613		Assy, Mc Back		Appelez-nous	-
143	M0201216		Screw - Sm		Appelez-nous	-
353	12039903		Back, M.c.		Appelez-nous	-
381	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
382	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
623	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
633	C8960601		Foot, Outer Case		Appelez-nous	-
905	10178405		Cover, O.c.back		Appelez-nous	-
915	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
925	M0229217		Screw, Holt Sm		Appelez-nous	-
972	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1221	M0310319		Plug Button		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1603	M0108001		Clamp, Tube		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
3122	12356403		Cord, Power (80`` Export)		Appelez-nous	-
3131	M0104102		Clip, Cord				$ 8.10
3172	Y10203701		Strain Relief		Appelez-nous	-
3192	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
4024	12187102		Harness, Cabinet		Appelez-nous	-
4782	B5794201		Clamp		Appelez-nous	-
5503	M0227217		Screw, Sm		Appelez-nous	-
7022	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7042	10547002		Clip, Drier		Appelez-nous	-
7132	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
