01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Control Assy


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door And Accessories


06 - Fz Shelves And Lights


07 - Machine Compartment


08 - Ref Door


09 - Ref Shelves, Lights, And Hinges

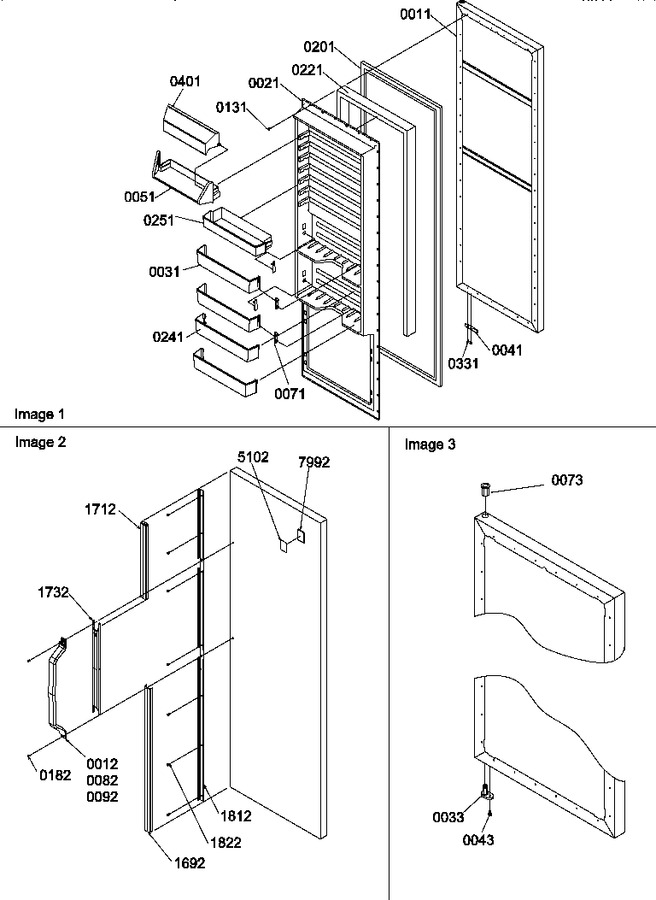

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881304W		Ref Dr Fm Assy		Appelez-nous	-
12	12139304		Handle, Door (white)		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
33	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
41	C8972405		Stop-w Door		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
82	10953111		Insert, Trim(white)		Appelez-nous	-
92	10953112		Insert, Trim(white)		Appelez-nous	-
131	M0219730		Screw				$ 7.65
182	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
1692	10810508		Trim, Bottom Door W Ref		Appelez-nous	-
1712	10810308		Trim-w Top Ref Dr		Appelez-nous	-
1732	10810401		Trim-w Ctr Dr		Appelez-nous	-
1812	10852214		Retainer-ref Trim		Appelez-nous	-
1822	M0216517		Screw		Appelez-nous	-
5102	10992114		Insert-w Nameplate		Appelez-nous	-
7992	10992001		Base, Nameplate		Appelez-nous	-
