Diagram # Part Number Description Series Availability Ships Price Add to Cart
341 M0322202 Tie Wire Appelez-nous -
351 M0580007 Grommet, Screw Appelez-nous -
421 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
441 12012801 Rail, L. Shelf Appelez-nous -
451 10991401 Rail- R Shelf Appelez-nous -
481 12353301 Shelf-sta/sl Fz Appelez-nous -
491 12015101 Rail, Shelf (lt) Appelez-nous -
501 10972801 Rail, Shelf (rt) Appelez-nous -
521 12013901 Rack, Freezer Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

1421 C8973801 Support, Frz Shelf Special Order $ 8.35

1431 12353101 Shelf-sta Fz Appelez-nous -
2141 M0238846 Screw-sm Appelez-nous -
2231 10014715 Shield, Light Appelez-nous -
2241 10493302 Cover, Frz Light Appelez-nous -
2501 M0270508 Washer Appelez-nous -
2571 12352206 Basket, 13`` Frz Appelez-nous -
2711 M0310305 Plug, Button (wht) Appelez-nous -
3051 A3189347 Gasket Appelez-nous -
3061 A3189346 Gasket Appelez-nous -
7091 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06


    View Diagram in Separate Window     Print Icon   Print Part List

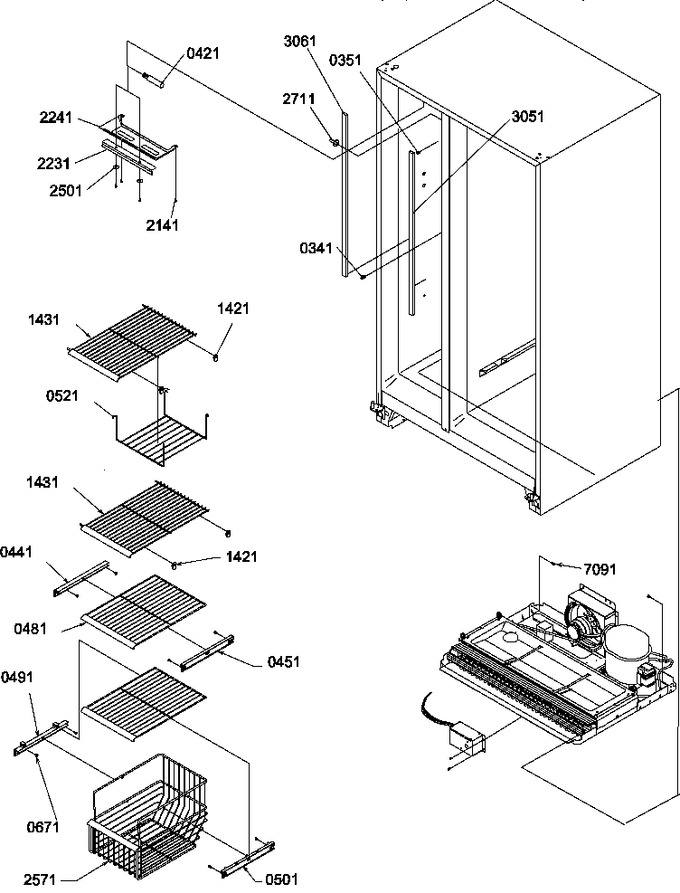

Diagram for SX322S2W (BOM: P1313801W W)
