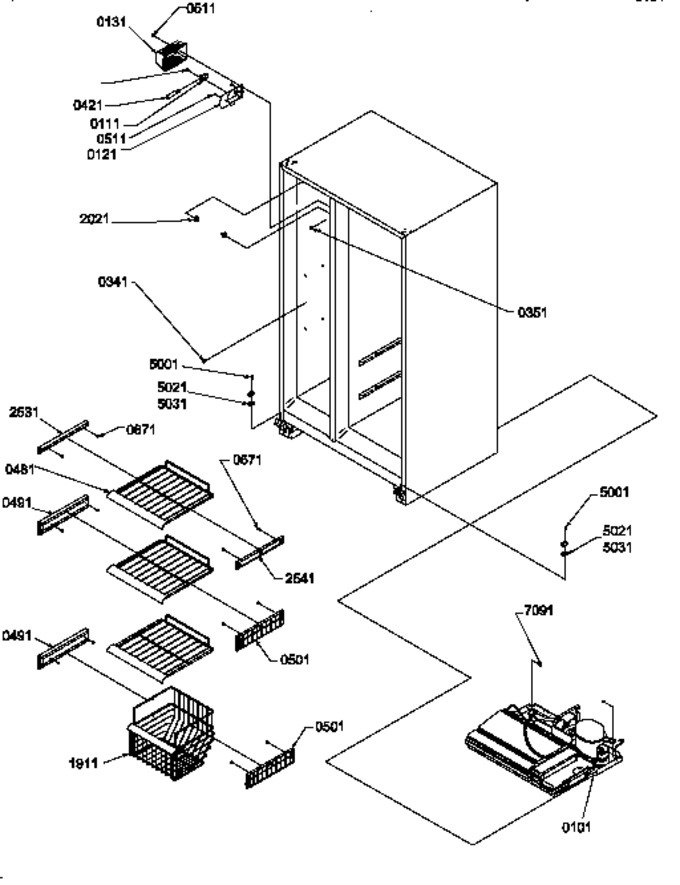

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	Y00000000		See Note Mc Assy -- (for Parts Breakdown See Pages 24 & 25 Image 1)		Appelez-nous	-
111	D7714404		Socket-light		Appelez-nous	-
121	D7753503		Plate-light Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
481	12012101		Shelf, Freezer Wire		Appelez-nous	-
491	12012901		Rail, L. Dbl Shelf		Appelez-nous	-
501	10991601		Rail- R Double		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1911	12011901		Basket, 11`` Freezer		Appelez-nous	-
2021	M0560005		Support		Appelez-nous	-
2531	12012801		Rail, L. Shelf		Appelez-nous	-
2541	10991401		Rail- R Shelf		Appelez-nous	-
5001	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
5021	B8387703		Shim, Door Closure		Appelez-nous	-
5031	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
