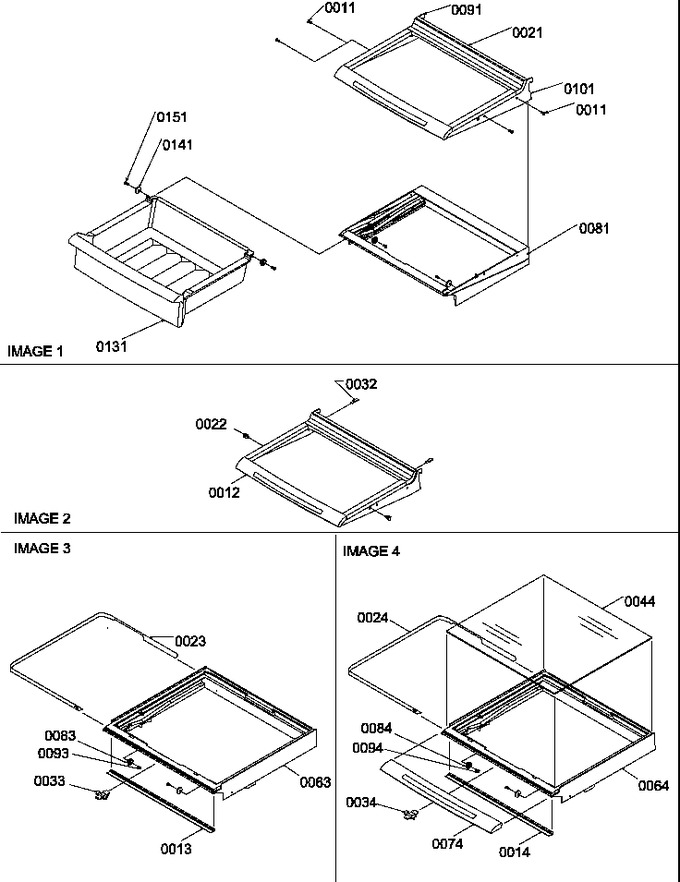

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0238229		Screw		Appelez-nous	-
12	10809511		Assy Shelf		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
21	10809519		Shelf, Full Glide-out		Appelez-nous	-
22	10875101		Stop, Shelf		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	10882702		Band-crisper		Appelez-nous	-
32	10968501		Clip		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
44	Y10370065		Glass-shelf		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
64	10783001		Frame-crisper		Appelez-nous	-
74	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783702		Frame, Deli		Appelez-nous	-
83	10481001		Roller, Pan				$ 10.99
84	10481001		Roller, Pan				$ 10.99
91	10809915		Rail, L Blank Side		Appelez-nous	-
93	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10809916		Rail, R Blank Side		Appelez-nous	-
131	10784101		Pan,deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
