SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelving And Light


06 - Ice & Water Cav/elec Brkt/& Toe Grille


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment

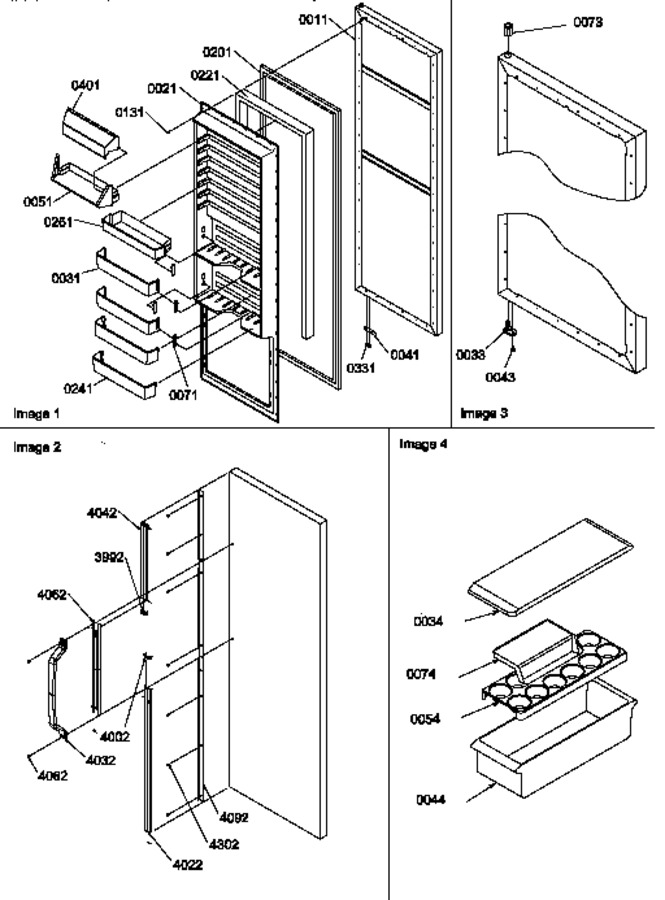

10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelves, Deli, And Crisper Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881301L		Ass`y, Ref Door(almond) Btm		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
34	10436404		Lid, Utility				$ 60.85
41	C8972406		Stop, L Door		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
44	10423128		Bin-utility		Appelez-nous	-
51	12083301		Shelf, Dairy		Appelez-nous	-
54	10436505		Tray, Egg		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
73	10393802		Bushing, Door (wht)		Appelez-nous	-
74	10310901		Tray, Butter		Appelez-nous	-
131	M0219730		Screw				$ 7.65
201	10359701		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
3992	10953114		Insert, Trim (almond)		Appelez-nous	-
4002	10953113		Insert, Door Trim		Appelez-nous	-
4022	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
4032	12139302		Handle, Door (almond)		Appelez-nous	-
4042	10810309		Trim-l Top Fz Dr		Appelez-nous	-
4062	10810402		Trim, L Ctr Door		Appelez-nous	-
4082	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
4092	10852214		Retainer-ref Trim		Appelez-nous	-
4302	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43

    View Diagram in Separate Window       Print Part List
