SELECT A DIAGRAM

Diagram for 02 - Control Panel, Lit/optional
02 - Control Panel, Lit/optional

Diagram for 03 - Oven Door
03 - Oven Door

Diagram for 04 - Oven
04 - Oven

Diagram for 05 - Unit
05 - Unit

Diagram for 06 - Latch And Vent, Optional
06 - Latch And Vent, Optional

Diagram for 07 - Wiring Harness
07 - Wiring Harness


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3183630 End Cap (left Hand) Appelez-nous -
1 3183631 End Cap (right Hand) Appelez-nous -
2 3179423 Trim, Top Appelez-nous -
2 3185383 Screw (2) Appelez-nous -
3 3183573 Trim, Center (black Model) Appelez-nous -
3 3183575 Trim, Center (white Model) Appelez-nous -
4 3183501 Door, Vent (black Model) Appelez-nous -
4 3183503 Door, Vent (white Model) Appelez-nous -
5 3148472 End Trim (vent Door) Left Hand (white Model) Appelez-nous -
5 3148471 End Trim (vent Door) Left Hand (white Model Right Hand) Appelez-nous -
5 3148697 End Trim (vent Door) Left Hand (black Model) Appelez-nous -
5 3148698 End Trim (vent Door) Left Hand (black Model) Appelez-nous -
6 342043 Trim, Bottom (screw (2)) Appelez-nous -
6 3184408 Trim, Bottom (black Model) Appelez-nous -
6 3184409 Trim, Bottom (white Model) Appelez-nous -
7 3192912 Control Panel (white Model) Appelez-nous -
7 3182911 Control Panel (black Model) Appelez-nous -
8 254217 Screw Appelez-nous -
8 3183492 Stiffener, Bracket Appelez-nous -
9 3184412 Trim, Vent Upper (white Model) Appelez-nous -
9 3184413 Trim, Vent Upper (black Model) Appelez-nous -
10 3184224 Shim Appelez-nous -
11 3182391 Electronic Timer (black Model) Appelez-nous -
11 3182392 Electronic Timer (white Model) Appelez-nous -
11 WP90767 Electronic Timer (screw (4))   (Replaces: 300890) In-Stock Immediately $ 8.25

12 3179916 Insert, Vent Appelez-nous -
13 3181279 Bracket, Vent Insert Appelez-nous -
13 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

14 3182718 Switch, Rocker (white Model) Appelez-nous -
14 3182717 Switch, Rocker (black Model) Appelez-nous -
15 311773 Screw Appelez-nous -
15 3183493 Stiffner, Bracket Appelez-nous -
LIT885515 Repair Parts List Appelez-nous -
LIT3182871 Use & Care Guide Appelez-nous -
LIT3183636 Installation Instructions Appelez-nous -
LIT3184299 Tech Sheet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

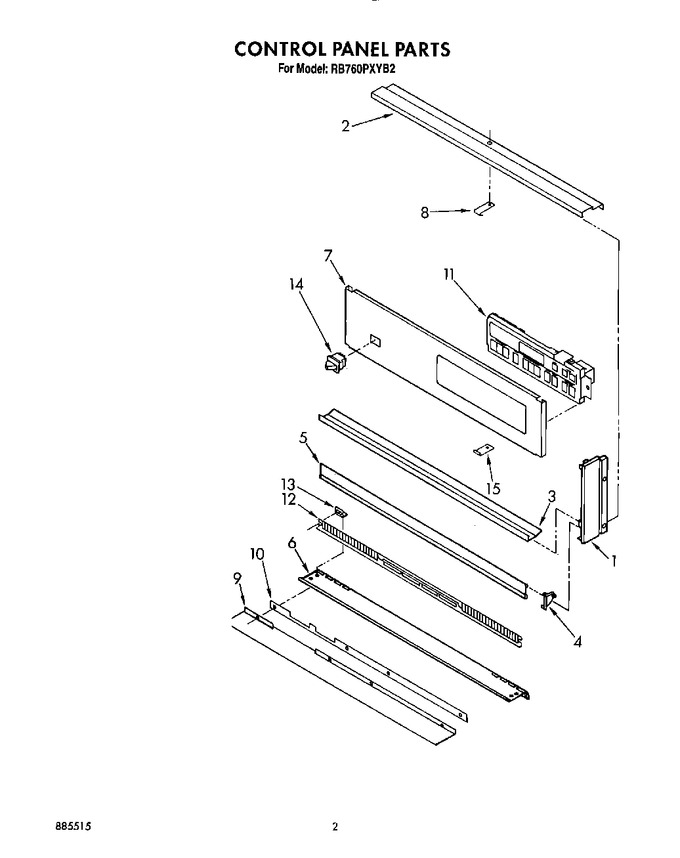

Diagram for RB760PXYB2
