SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Oven Door


04 - Oven


05 - Unit

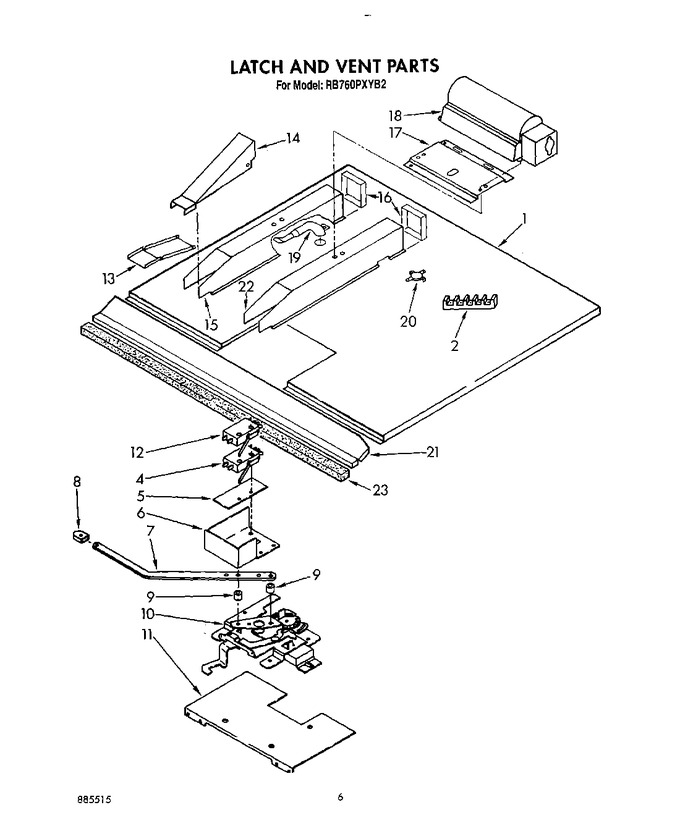

06 - Latch And Vent, Optional


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183748		Module, Top		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
2	308043		Screw (2)		Appelez-nous	-
4	3178669		Switch, Latch		Appelez-nous	-
4	3177988		Screw (2)		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	3177662		Guard, Latch		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
9	3184042		Screw (2)		Appelez-nous	-
9	3184041		Spacer, Latch Handle (2)		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
11	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
11	3177496		Plate, Mounting		Appelez-nous	-
12	98106		Screw (2)		Appelez-nous	-
12	3178671		Switch, Latch		Appelez-nous	-
13	3183954		Nozzel, Vent Bottom		Appelez-nous	-
14	3183955		Nozzel, Vent Top		Appelez-nous	-
15	WP3177991		Fan (screw (4))   (Replaces: 3177991)			Immediately	$ 7.55
15	3183999		Box, Vent		Appelez-nous	-
16	3183964		End, Vent Box		Appelez-nous	-
16	WP90767		Screw (6)   (Replaces: 300890)			Immediately	$ 8.25
17	3183533		Bracket, Mounting		Appelez-nous	-
18	3183720		Blower, Fan		Appelez-nous	-
19	3183791		Tube, Vent		Appelez-nous	-
20	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
20	3149650		Spst Thermostat		Appelez-nous	-
21	3183785		Shield, Heat		Appelez-nous	-
21	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
22	3183953		Box, Vent		Appelez-nous	-
23	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
23	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
23	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
23	350942		Primer				$ 94.14
23	350941		Leveler (primer)		Appelez-nous	-
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	978883		Almond		Appelez-nous	-
23	261891		Harvest Gold		Appelez-nous	-
23	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
23	285368		Platinum		Appelez-nous	-
23	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 81.83
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	313755		Seal, Foam		Appelez-nous	-
23	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242826		14 Ga. 150~c Rating (white)		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242832		14 Ga. 200~c Rating (yellow)		Appelez-nous	-
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242829		12 Ga. 150~c Rating (red)		Appelez-nous	-
23	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
23	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
23	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
23	WP261869		Citrine White   (Replaces: 261869)				$ 27.83
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
23	261890		Harvest Gold		Appelez-nous	-
23	285365		Toast		Appelez-nous	-
23	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
23	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89

    View Diagram in Separate Window       Print Part List
