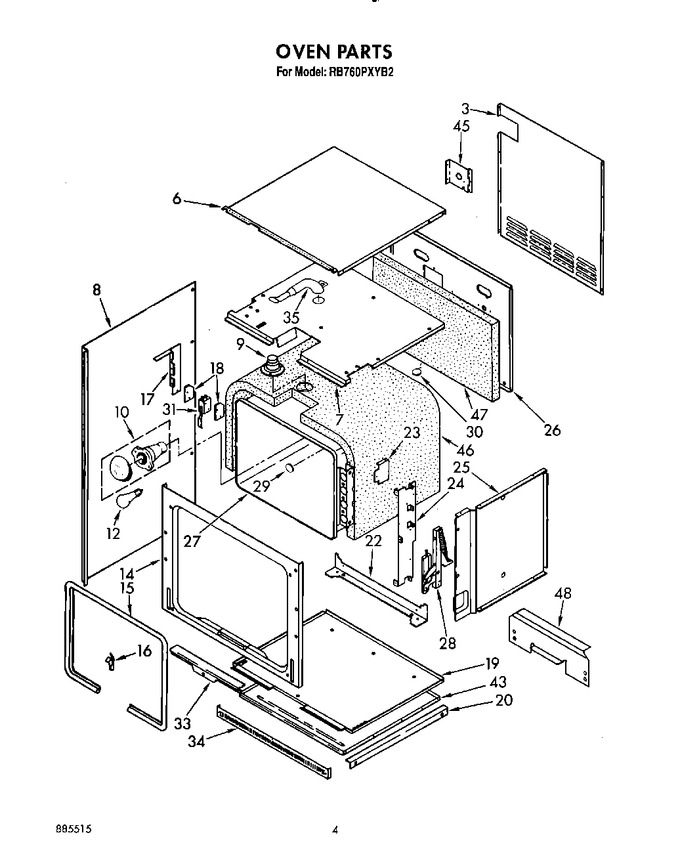

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3177625 | Cabinet, Back |
|
- | |||||
| 3 | WP90767 | Screw (10) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 6 | 3178138 | Cabinet, Top |
|
- | |||||
| 6 | WP90767 | Screw (5) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 7 | 3183748 | Module, Top |
|
- | |||||
| 7 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 8 | 3177442 | Side, Cabinet Left & Right Side |
|
- | |||||
| 8 | WP90767 | Screw (14) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 9 | 3181699 | Tube, Vent |
|
- | |||||
| 9 | 3185383 | Screw (3) |
|
- | |||||
| 10 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 87.01 | ||||
| 12 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 14 | 3177689 | Frame, Front |
|
- | |||||
| 15 | 3179813 | Seal, Door |
|
- | |||||
| 15 | 3179776 | Screw (4) |
|
- | |||||
| 16 | 3179848 | Clip, Oven Seal |
|
- | |||||
| 17 | 3177681 | Bracket, Switch |
|
- | |||||
| 18 | 3177923 | Insulator, Switch |
|
- | |||||
| 19 | 3177621 | Bottom, Module |
|
- | |||||
| 20 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 20 | 3179220 | Rail, Support (2) |
|
- | |||||
| 22 | 3177434 | Support, Oven |
|
- | |||||
| 22 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 23 | 3178612 | Shield, Radiation |
|
- | |||||
| 24 | 3179795 | Screw (6) |
|
- | |||||
| 24 | 3177433 | Bracket, Hinge |
|
- | |||||
| 25 | 3177572 | Side, Module (r.h. & L.h.) |
|
- | |||||
| 26 | 3177560 | Back, Module |
|
- | |||||
| 27 | 3177493 | Liner, Oven |
|
- | |||||
| 28 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 28 | 3179795 | Screw (4) |
|
- | |||||
| 29 | 3185085 | Button, Plug |
|
- | |||||
| 30 | 3185109 | Button, Plug |
|
- | |||||
| 30 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 31 | 313489 | Screw (2) |
|
- | |||||
| 31 | 4159117 | Nut (2) |
|
- | |||||
| 31 | 4173553 | Switch, Door |
|
- | |||||
| 32 | 3177923 | Insulator, Switch |
|
- | |||||
| 33 | 3179776 | Screw (2) |
|
- | |||||
| 33 | 3179587 | Retainer, Seal |
|
- | |||||
| 34 | 3177789 | Vent, Lower Trim (brushed Chrome) |
|
- | |||||
| 34 | 3179847 | Vent, Lower Trim (screw, Zinc) |
|
- | |||||
| 34 | 3177783 | Vent, Lower Trim (black Model) |
|
- | |||||
| 34 | 3180022 | Vent, Lower Trim (screw, Black) |
|
- | |||||
| 35 | 3183791 | Vent, Tube |
|
- | |||||
| 35 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 43 | 3177551 | Bottom, Oven |
|
- | |||||
| 45 | 3177545 | Bracket, Conduit Mounting |
|
- | |||||
| 46 | 3177862 | Insulation, Oven |
|
- | |||||
| 47 | 3177872 | Insulation, Back |
|
- | |||||
| 48 | 3183752 | Bracket, Mounting Control Panel |
|
- |
