Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4455605 Receiver, Hinge (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

1 WP4455606 Receiver, Hinge (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

4 W10105790 Bumper, Door Special Order $ 7.41

5 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

6 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

7 4455863 Top Chassis Special Order $ 117.60

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 122.46

10 W10067870 Lens, Light Special Order $ 65.50

11 WPW10734065 Assembly, Oven Light   (Replaces: W10009930) Special Order $ 101.46

12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 53.62

14 9760754 Frame, Front Special Order $ 132.66

15 WP4455380 Gasket, Door   (Replaces: 4455380) In-Stock Immediately $ 174.79

16 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

17 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

19 4451476 Support, Insulation Appelez-nous -
21 WP8302793 Rail, Side (right)   (Replaces: 8302793) Special Order $ 154.74

21 8302794 Rail, Side (left) Special Order $ 164.19

21 WP4448444 Grommet   (Replaces: 4448444) Special Order $ 7.85

23 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

24 WP9760889 Assembly, Latch   (Replaces: 9760888) In-Stock Immediately $ 345.08

25 W10782197 Side, Chassis   (Replaces: 4455641) Special Order $ 150.69

26 4452232 Back, Chassis Appelez-nous -
28 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 95.83

29 W10358914 Vent, Center   (Replaces: 4452265) Appelez-nous -
30 WP9759243 Thermostat   (Replaces: 9759243) In-Stock Immediately $ 55.44

31 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 9.30

32 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 150.07

33 4449845 Support, Bracket Appelez-nous -
WP4450363 Insulation, Back   (Replaces: 4450363) Special Order $ 189.22

WP4449314 Insulation, Wrap   (Replaces: 4449314) Special Order $ 189.64


    View Diagram in Separate Window     Print Icon   Print Part List

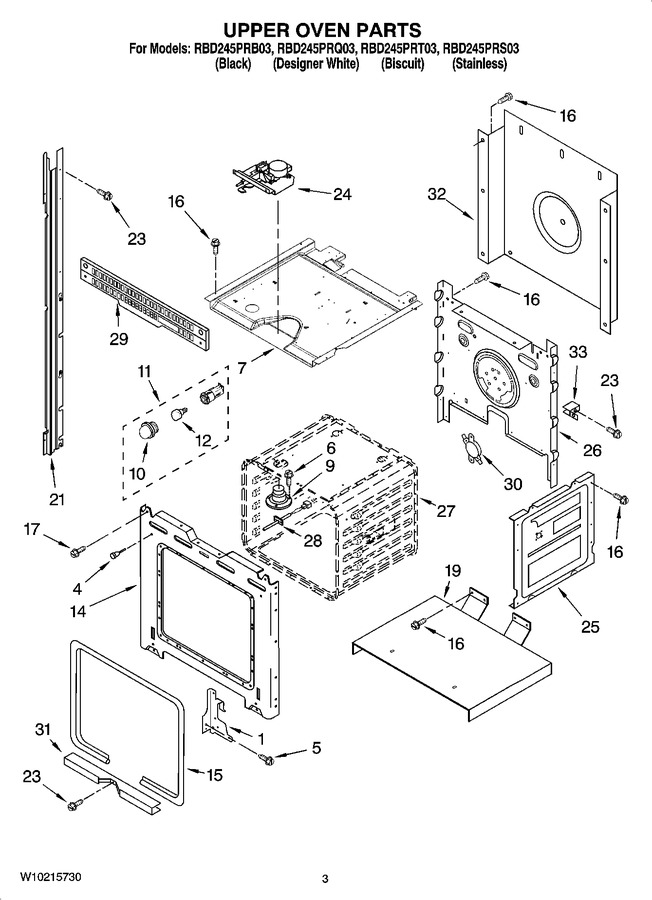

Diagram for RBD245PRQ03
