01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts

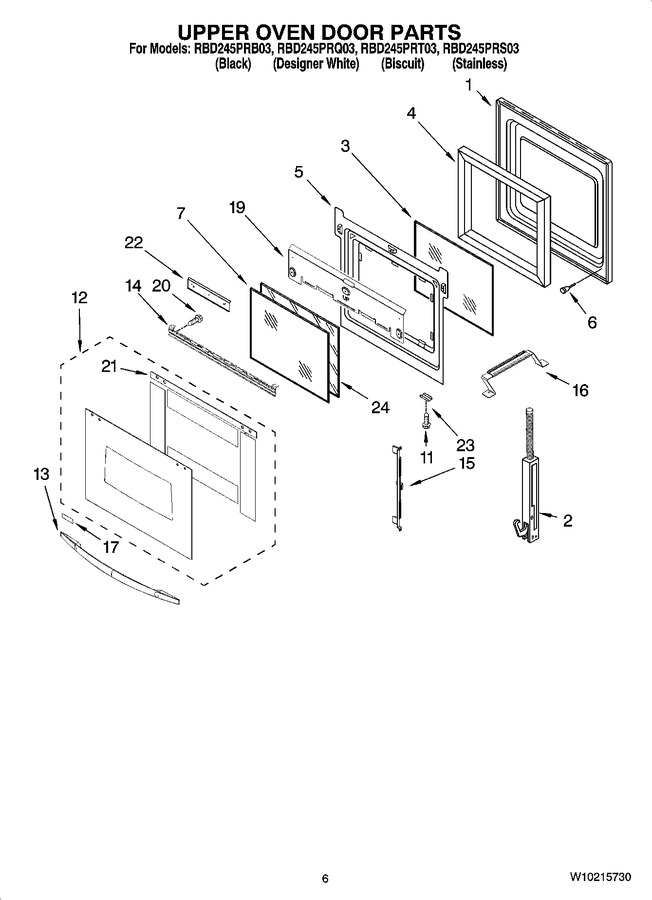

04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 351.88
2	9760567		Hinge, Door (right)		Appelez-nous	-
2	9760568		Hinge, Door (left)		Appelez-nous	-
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4457130		Retainer, Glass		Appelez-nous	-
6	4448520		Bumper, Door				$ 22.25
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 198.29
11	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
12	8303312		Assembly, Door Glass (stainless)		Appelez-nous	-
12	8303340		Assembly, Door Glass (biscuit)		Appelez-nous	-
12	8303337		Assembly, Door Glass (white)		Appelez-nous	-
12	8303328		Assembly, Door Glass (black)		Appelez-nous	-
13	8302807		Door Handle (black)		Appelez-nous	-
13	8302808		Door Handle (white)		Appelez-nous	-
13	8302809		Door Handle (biscuit)		Appelez-nous	-
14	W10136471		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
17	W10215072		Nameplate		Appelez-nous	-
19	4457101		Shield, Heat		Appelez-nous	-
20	W10276642		Screw   (Replaces: 4451040)				$ 6.41
21	8303876		Seal, Door		Appelez-nous	-
22	4457112		Shield, Heat (btm)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
24	WP9759226		Glass, Inner   (Replaces: 9759226)				$ 186.64
