SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts

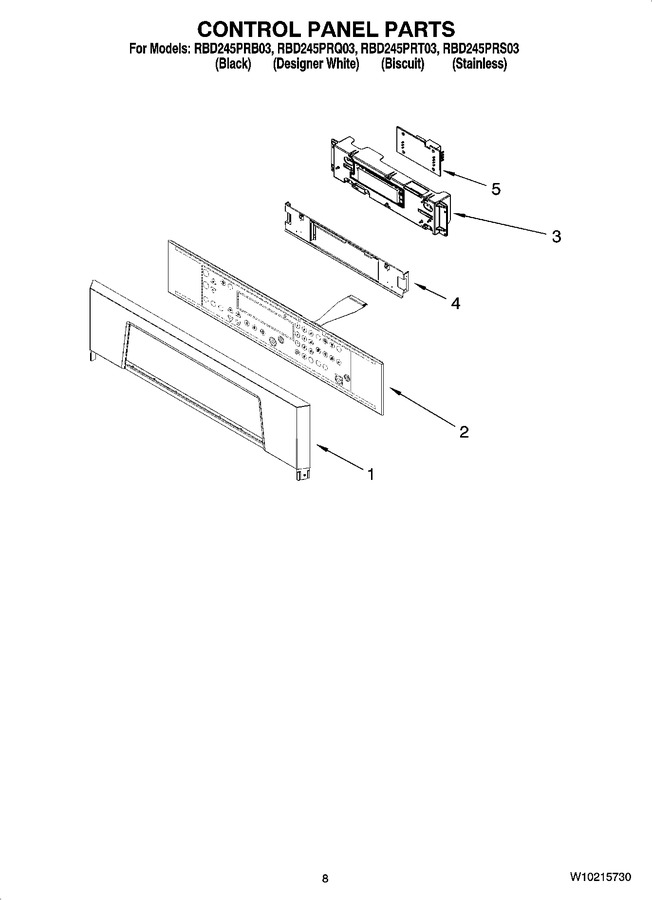

06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8302840		Panel, Control (black)   (Replaces: 8302840)				$ 285.09
1	8302841		Panel, Control (white)		Appelez-nous	-
1	8302842		Panel, Control (biscuit)		Appelez-nous	-
2	8304272		Membrane Switch (black)		Appelez-nous	-
2	8304273		Membrane Switch (white)		Appelez-nous	-
2	8304274		Membrane Switch (biscuit)		Appelez-nous	-
3	8303883		Microcomputer		Appelez-nous	-
4	W10222958		Backer, Control Panel		Appelez-nous	-
5	8301848		Board, Motorized Latch				$ 184.23

    View Diagram in Separate Window       Print Part List
