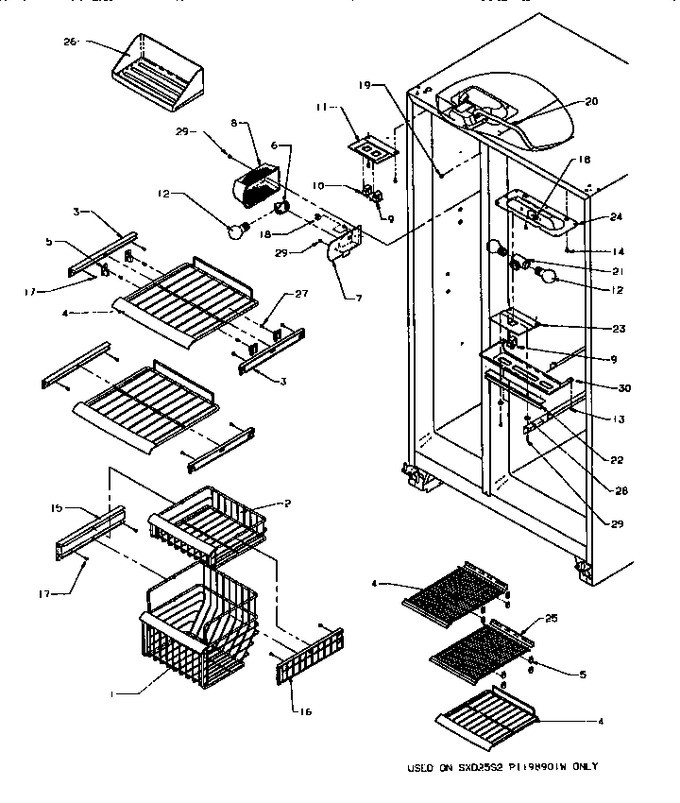

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12011903 | Basket, 11`` Freezer |
|
- | |||||
| 3 | 10991402 | Rail, R Shelf |
|
- | |||||
| 3 | 12012802 | Rail, L. Shelf |
|
- | |||||
| 3 | 10991403 | Rail-r Shelf |
|
- | |||||
| 3 | 12012803 | Rail, L. Dbl Shelf |
|
- | |||||
| 4 | 12012103 | Shelf, Sld. Freezer |
|
- | |||||
| 6 | D7714404 | Socket-light |
|
- | |||||
| 7 | D7753503 | Plate-light Socket |
|
- | |||||
| 8 | D7786602 | Shield, Light |
|
- | |||||
| 9 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 10 | 18805 | Switch (Replaces: C3680306) |
|
$ 21.59 | |||||
| 11 | D7749002 | Cover Light |
|
- | |||||
| 12 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 13 | M0219546 | Screw |
|
- | |||||
| 14 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 15 | 12013002 | Rail, L. Dbl Shelf |
|
- | |||||
| 16 | 10972802 | Rail, Shelf (rt) |
|
- | |||||
| 17 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 18 | B5733302 | Clip, Ground |
|
- | |||||
| 19 | M0580007 | Grommet, Screw |
|
- | |||||
| 20 | 10535601 | Harness-fz Liner |
|
- | |||||
| 21 | 10796001 | Socket, Dual Lamp |
|
- | |||||
| 22 | 10014716 | Shield, Light |
|
- | |||||
| 23 | D7297603 | Cover, Light Sw |
|
- | |||||
| 24 | D7716407 | Housing-ref Light |
|
- | |||||
| 26 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 28 | M0270508 | Washer |
|
- | |||||
| 29 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 30 | 10493201 | Cover, Ref. Light |
|
- |
