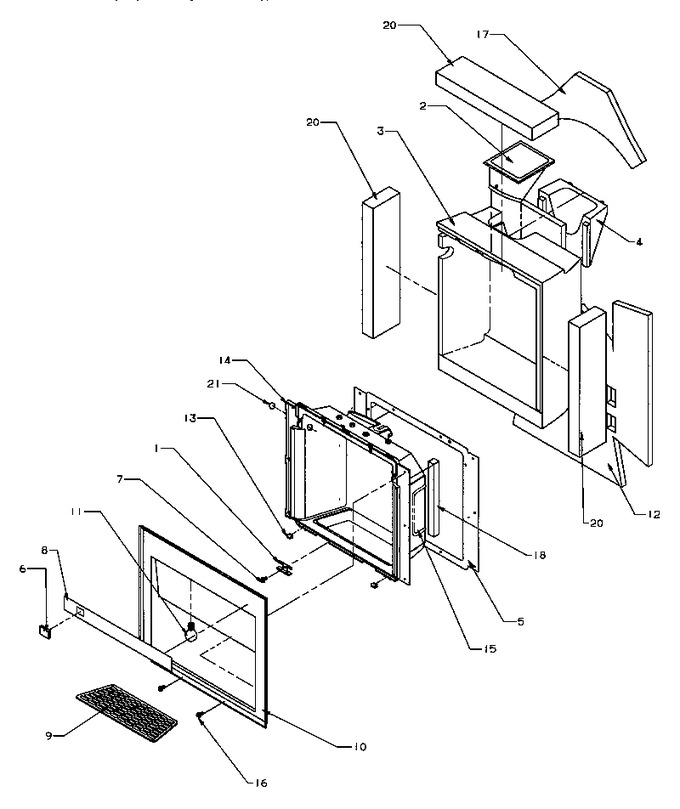

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	10131401		Ice Chute		Appelez-nous	-
3	10895401		Insul., I/w Cavity		Appelez-nous	-
4	10895501		Insul, Ice Chute		Appelez-nous	-
5	D7791003		Gasket Cavity		Appelez-nous	-
6	10176312		Cap-silver Switch		Appelez-nous	-
7	M0216517		Screw		Appelez-nous	-
8	10984605		Insert, L Facade		Appelez-nous	-
9	D7750609		Grille, Sump L		Appelez-nous	-
10	10986106		Facade, Disp(almond)		Appelez-nous	-
11	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
12	10941501		Insul, Batt		Appelez-nous	-
13	B8390301		Clip, Facade		Appelez-nous	-
14	10876002		Cavity, Disp (almond)		Appelez-nous	-
15	10882105		Heater-cavity		Appelez-nous	-
16	M0219640		Screw		Appelez-nous	-
17	Y10949901		Gasket-ice Chute		Appelez-nous	-
18	A3030357		Gasket		Appelez-nous	-
19	B0523562		Insul. By The Ft.		Appelez-nous	-
20	B0523596		Insul. By The Ft.		Appelez-nous	-
21	M0311601		Plug, Button		Appelez-nous	-
