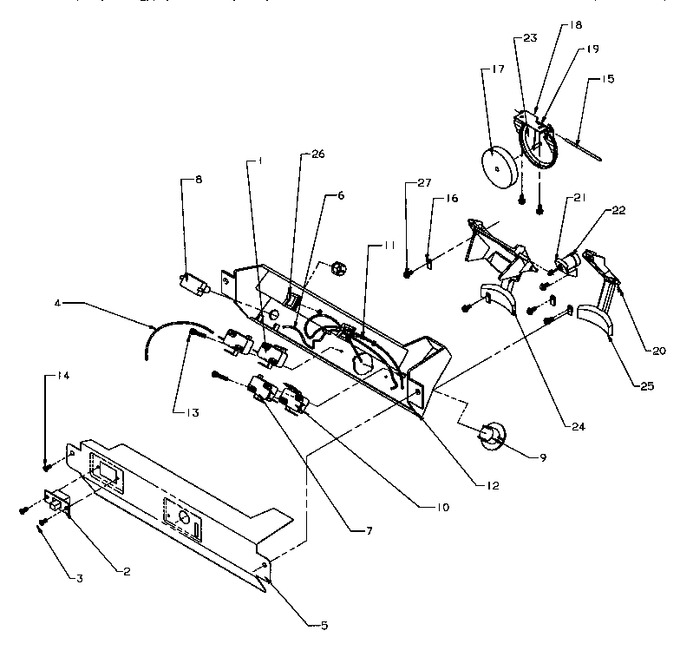

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10533001		Switch, Limit				$ 14.43
2	10166002		Switch-crushed/cube		Appelez-nous	-
3	M0234003		Screw		Appelez-nous	-
4	D7726592		Wire-jumper		Appelez-nous	-
5	10131802		Cover-elec Brkt		Appelez-nous	-
6	D7726590		Wire-jumper		Appelez-nous	-
7	WP10533003		Switch, Limit (ice Disp)   (Replaces: 10533003)				$ 73.29
8	10166101		Switch-light Cavity				$ 6.49
9	10131701		Socket, Light		Appelez-nous	-
10	10533002		Switch, Limit (water Disp)		Appelez-nous	-
11	D7726597		Wire, Jumper		Appelez-nous	-
12	10323305		Bracket, Elec Mtg		Appelez-nous	-
13	M0237809		Screw, T.f.		Appelez-nous	-
14	M0216517		Screw		Appelez-nous	-
15	A1061501		Pin, Chute Door		Appelez-nous	-
16	A1061601		Retainer, Ice Arm		Appelez-nous	-
17	B8380701		Insulation, Chute Door		Appelez-nous	-
18	B8380801		Brkt-chute Door		Appelez-nous	-
19	B8380901		Spring,chute Door				$ 7.18
20	B8385401		Spring, Return		Appelez-nous	-
21	C8972501		Retainer Door Delay		Appelez-nous	-
22	C8973601		Delay, Door		Appelez-nous	-
23	10246601		Kit,chute Dr No.3		Appelez-nous	-
24	D7750307		Arm- Stn Ice Act.		Appelez-nous	-
25	10164905		Arm, Water Actuator (stn)		Appelez-nous	-
26	B5667304		Wire Clip		Appelez-nous	-
27	M0211116		Screw, Sm		Appelez-nous	-
NI	R0156692		Kit,chute Dr No.3		Appelez-nous	-
