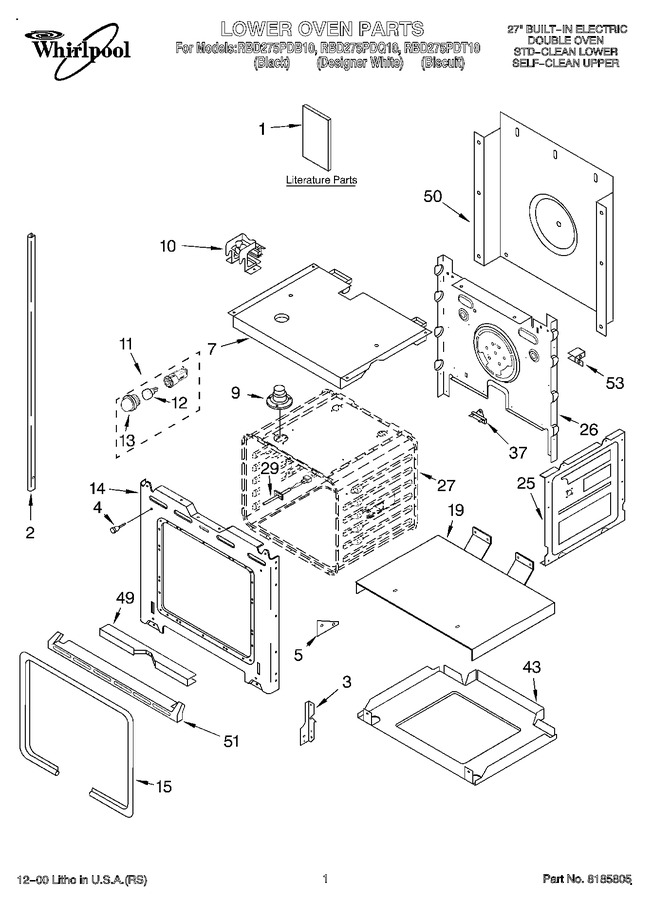

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450410		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450568		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4451887		Literature Parts (tech Sheet)		Appelez-nous	-
2	4452122		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
2	4452123		Trim, Side (lh Biscuit)		Appelez-nous	-
2	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (screw White)				$ 5.27
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
9	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 14.72
10	4451664		Fan & Bracket Assy		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
13	4452165		Lens, Light		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	4451739		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	4450492		Gasket, Door		Appelez-nous	-
19	4451477		Support, Insulation		Appelez-nous	-
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4452414		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449315		Insulation, Wrap				$ 64.81
