SELECT A DIAGRAM

01 - Lower Oven, Literature

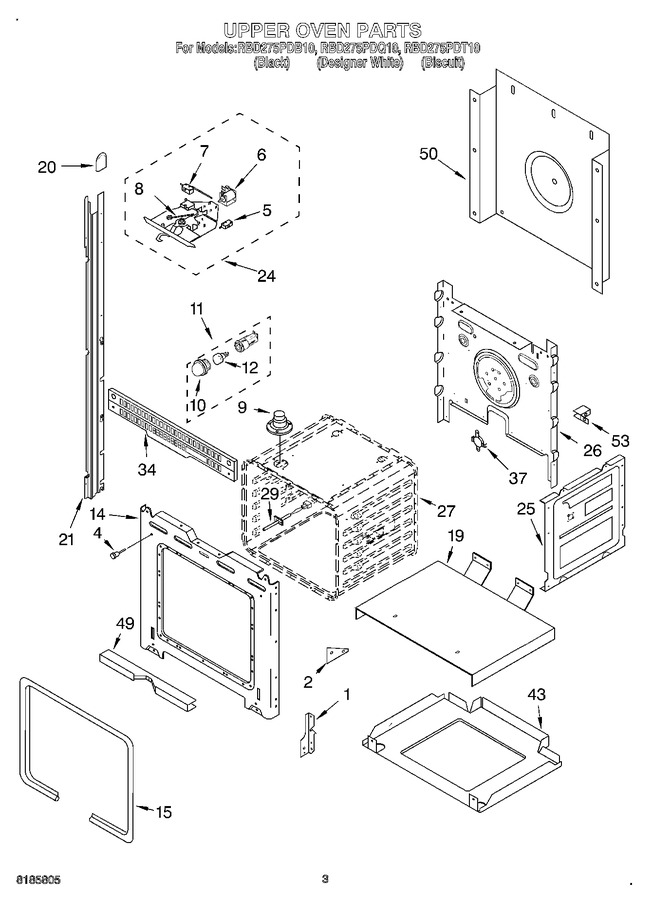

02 - Upper Oven


03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455723		Reciever, Hinge (right Hand)				$ 37.24
1	4455722		Reciever, Hinge (left Hand)				$ 37.47
2	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
4	4448520		Bumper, Door				$ 22.25
5	4452312		Switch, Micro				$ 90.43
6	4452224		Solenoid		Appelez-nous	-
7	4451426		Switch, Micro		Appelez-nous	-
8	4451537		Spring, Latch		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
10	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 14.72
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	4451739		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
24	4451896		Latch Assembly				$ 163.41
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
34	4452266		Vent, Center				$ 60.71
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	4449315		Insulation, Wrap				$ 64.81
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Bracket-support		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
