SELECT A DIAGRAM
01 - Lower Oven, Literature
02 - Upper Oven
03 - Lower Oven Door
04 - Upper Oven Door

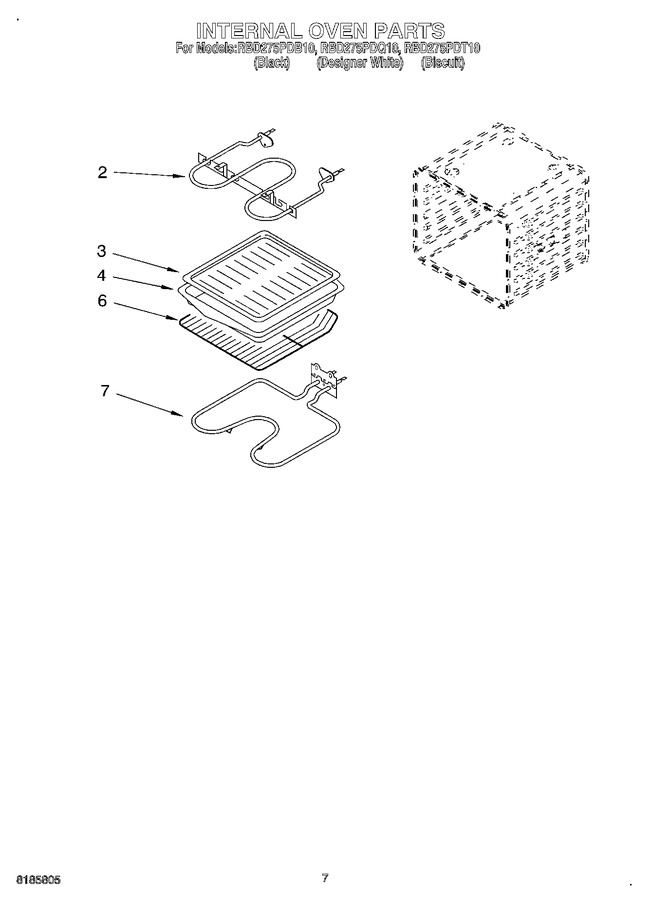

05 - Internal Oven
06 - Control Panel
07 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP9760767 | Element, Broil (Replaces: 4452154) |
|
Immediately | $ 172.36 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 60.71 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 60.71 | ||||
| 6 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 7 | WPW10207397 | Element, Bake (Replaces: 4452153) |
|
Immediately | $ 77.15 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 |
