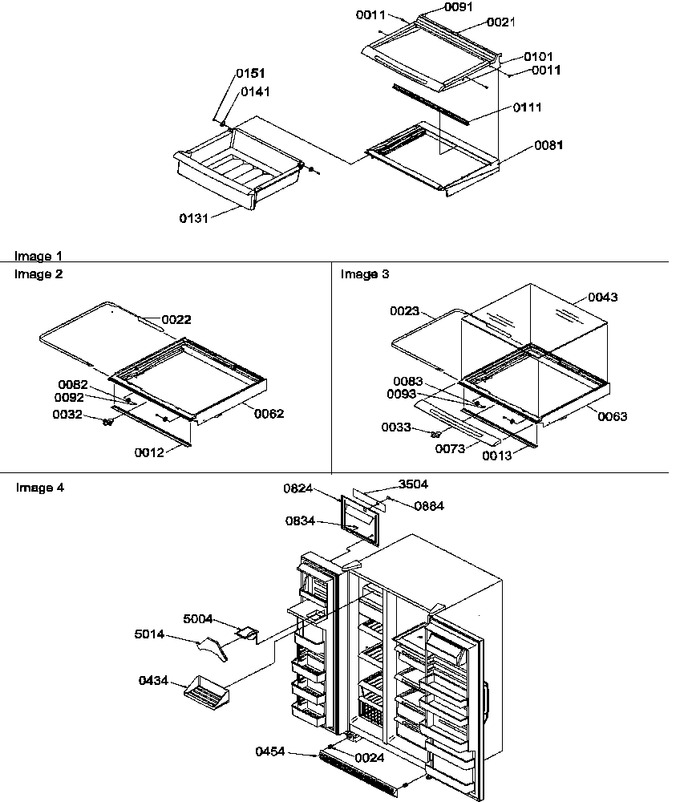

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0238229		Screw		Appelez-nous	-
12	10968801		Seal-crisp Front		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
21	10809508		Shelf, Full Gli Out		Appelez-nous	-
22	10882701		Band, Crisper		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	M0117301		Clip, Grille		Appelez-nous	-
32	10852501		Slide, Crisper/deli		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
43	Y10370066		Glass, Shelf		Appelez-nous	-
62	10782901		Frame,crisper		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
73	12113001		Trim, Crisper Frt		Appelez-nous	-
81	10783803		Frame, Deli		Appelez-nous	-
82	10481001		Roller, Pan				$ 10.99
83	10481001		Roller, Pan				$ 10.99
91	10846403		Blank L.side Rail		Appelez-nous	-
92	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
93	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10846404		Blank R.side Rail		Appelez-nous	-
111	10876302		Director-deli		Appelez-nous	-
131	10784201		Pan, Deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
434	10870801		Shelf, Ice Cream		Appelez-nous	-
454	10470311		Kit, Toe Grille (alm)		Appelez-nous	-
824	10986106		Facade, Disp(almond)		Appelez-nous	-
834	M0219640		Screw		Appelez-nous	-
884	12043801		Cap-silver Switch		Appelez-nous	-
3504	10984605		Insert, L Facade		Appelez-nous	-
5004	10504101		Chute, Ice		Appelez-nous	-
5014	12044501		Gasket-ice Chute		Appelez-nous	-
