Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10881401L Assy Frz Door Fm Appelez-nous -
21 10860902 Liner, Frz Door Appelez-nous -
31 10895501 Insul, Ice Chute Appelez-nous -
33 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

41 10895401 Insul., I/w Cavity Appelez-nous -
61 M0216517 Screw Appelez-nous -
71 D7791003 Gasket Cavity Appelez-nous -
73 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

81 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

101 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

151 10058404 Elec Brkt Assy Appelez-nous -
171 10952102 Harness-fz Door Appelez-nous -
181 10359702 Gasket (w Frz Dr) Appelez-nous -
211 C8982801 Retainer, Door Liner Appelez-nous -
221 D7828601 Retainer, Door Liner Appelez-nous -
251 Y00000000 See Note L Cavity Assy -- (see Image 1 Pages 10 & 11 For Assy Breakdown) Appelez-nous -
291 C8992901 Clip Appelez-nous -
301 M0219730 Screw Special Order $ 7.65

321 10941501 Insul, Batt Appelez-nous -
341 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

351 C8972406 Stop, L Door Appelez-nous -
361 876370 Insulation Bott (1= 1ft)   (Replaces: B0523588) Special Order $ 243.14

371 W10857122 Light Bulb   (Replaces: M0360001) Special Order $ 14.52

401 12016901 Insul, Batt (ref. Door) Appelez-nous -
411 12016902 Insul, Batt (ref. Door) Appelez-nous -
1221 M0311601 Plug, Button Appelez-nous -
1682 10810509 Trim, Bottom Door Appelez-nous -
1702 12139302 Handle, Door (almond) Appelez-nous -
1722 10810309 Trim-l Top Fz Dr Appelez-nous -
1752 10810602 Trim, L Ctr I & W Dr Appelez-nous -
1792 R9800670 Screw, Mounting   (Replaces: M0223230) Special Order $ 10.58

1822 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

1832 10852212 Ret-up Fz Trim Appelez-nous -
1842 10852215 Ret-lw Fz Trim Appelez-nous -
2801 B0523596 Insul. By The Ft. Appelez-nous -
4002 10953117 Insert, Door Trim(``a``) Appelez-nous -
4012 10953118 Insert, Trim (``b``) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

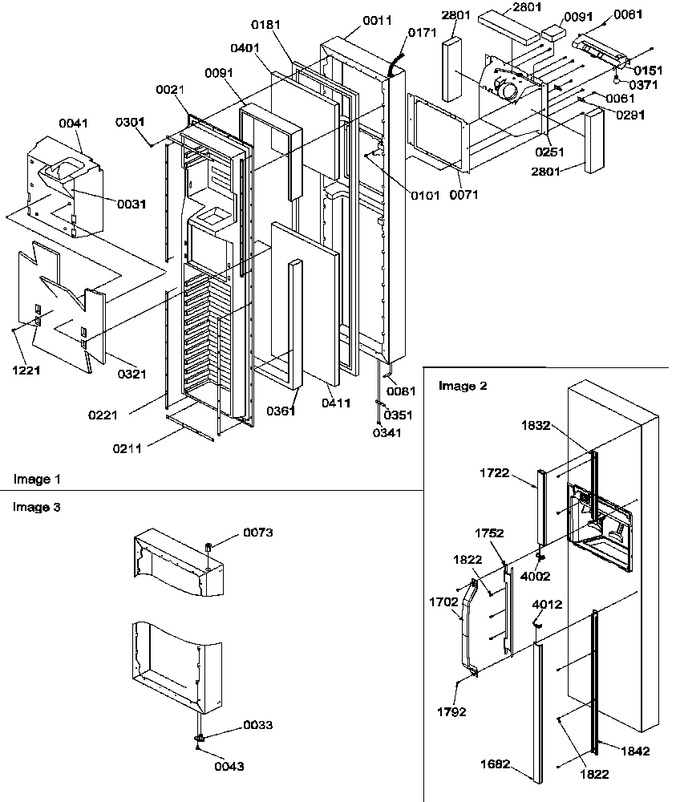

Diagram for SXD25S2L (BOM: P1190421W L)
