SELECT A DIAGRAM
New Model Search:

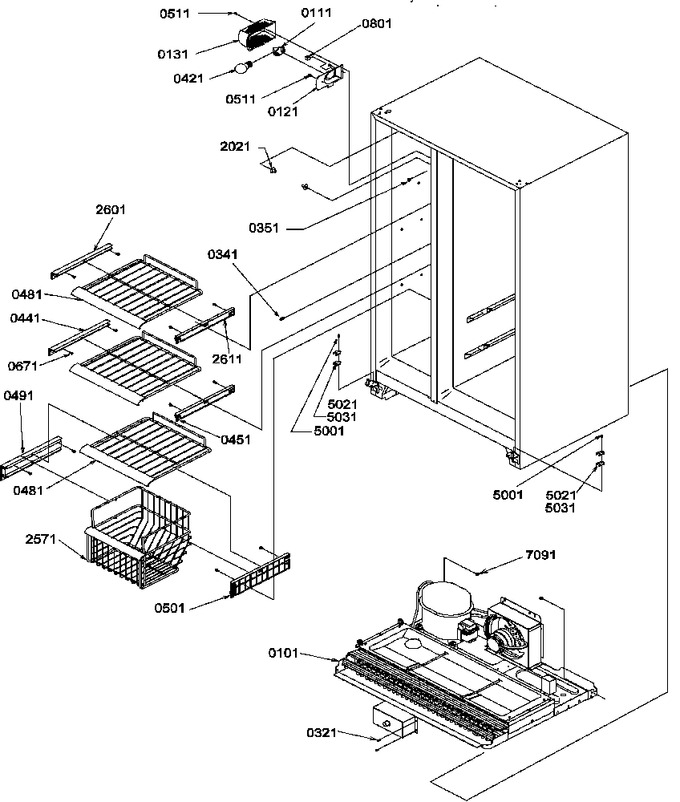

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | Y00000000 | See Note Machine Compartment Assy -- (see Page 24 & 25 For Assy Breakdown) |
|
- | |||||
| 111 | D7714404 | Socket-light |
|
- | |||||
| 121 | D7753503 | Plate-light Socket |
|
- | |||||
| 131 | D7786602 | Shield, Light |
|
- | |||||
| 321 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 441 | 12012802 | Rail, L. Shelf |
|
- | |||||
| 451 | 10991402 | Rail, R Shelf |
|
- | |||||
| 481 | 12012103 | Shelf, Sld. Freezer |
|
- | |||||
| 491 | 12013002 | Rail, L. Dbl Shelf |
|
- | |||||
| 801 | B5733302 | Clip, Ground |
|
- | |||||
| 2021 | M0560005 | Support |
|
- | |||||
| 2571 | 12011903 | Basket, 11`` Freezer |
|
- | |||||
| 2601 | 12012803 | Rail, L. Dbl Shelf |
|
- | |||||
| 5001 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 5021 | B8387703 | Shim, Door Closure |
|
- | |||||
| 5031 | WP67005716 | Shim, Dr Closure (blk) (Replaces: B8387704) |
|
$ 7.83 | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
