SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Deli, Shelves, Crisper Assy
03 - Deli, Shelves, Crisper Assy

Diagram for 04 - Drain System, Rollers, And Evap Assy
04 - Drain System, Rollers, And Evap Assy

Diagram for 05 - Facade Dispenser Cover, Elec Brkt Assy
05 - Facade Dispenser Cover, Elec Brkt Assy

Diagram for 06 - Freezer Door
06 - Freezer Door

Diagram for 07 - Freezer Shelves And Lights
07 - Freezer Shelves And Lights

Diagram for 08 - Ice Bucket Auger, Ice Maker And Parts
08 - Ice Bucket Auger, Ice Maker And Parts

Diagram for 09 - Ice Maker/control Assy
09 - Ice Maker/control Assy

Diagram for 10 - Machine Compartment & Muffler Assy
10 - Machine Compartment & Muffler Assy

Diagram for 11 - Refrigerator Door, Door Trim And Handles
11 - Refrigerator Door, Door Trim And Handles

Diagram for 12 - Shelves, Lights, And Hinges
12 - Shelves, Lights, And Hinges


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
33 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

205 M0753003 Nut, Sleeve Appelez-nous -
314 12041617 Assy, Mc Back Appelez-nous -
324 M0201216 Screw - Sm Appelez-nous -
354 12039903 Back, M.c. Appelez-nous -
614 WP489474 Screw   (Replaces: M0220634) In-Stock Immediately $ 8.55

624 C8960601 Foot, Outer Case Appelez-nous -
644 M0108001 Clamp, Tube Appelez-nous -
804 M0227217 Screw, Sm Appelez-nous -
834 10178405 Cover, O.c.back Appelez-nous -
844 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

865 A1055101 Spring, Antikink Appelez-nous -
875 A1055105 Spring, Anti Kink Appelez-nous -
972 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1115 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1135 D7827204 Valve, Water (220/240 Vac, 50 Special Order $ 113.44

1215 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1243 12362301 Harness, Cabinet Appelez-nous -
1265 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1305 10496302 Brkt, Water Valve Appelez-nous -
1311 10178505 Cover - Wire Appelez-nous -
1932 B5794201 Clamp Appelez-nous -
1991 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

1992 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

2002 12356405 Cord, 80`` Power Appelez-nous -
2061 A3189336 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

2302 WPB2150504 Drier   (Replaces: 10743201) Special Order $ 136.98

2322 10547002 Clip, Drier Appelez-nous -
2332 Y10203701 Strain Relief Appelez-nous -
2352 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

2355 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

2575 M0253504 Screw Appelez-nous -
2591 M0104102 Clip, Cord Special Order $ 8.10

NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

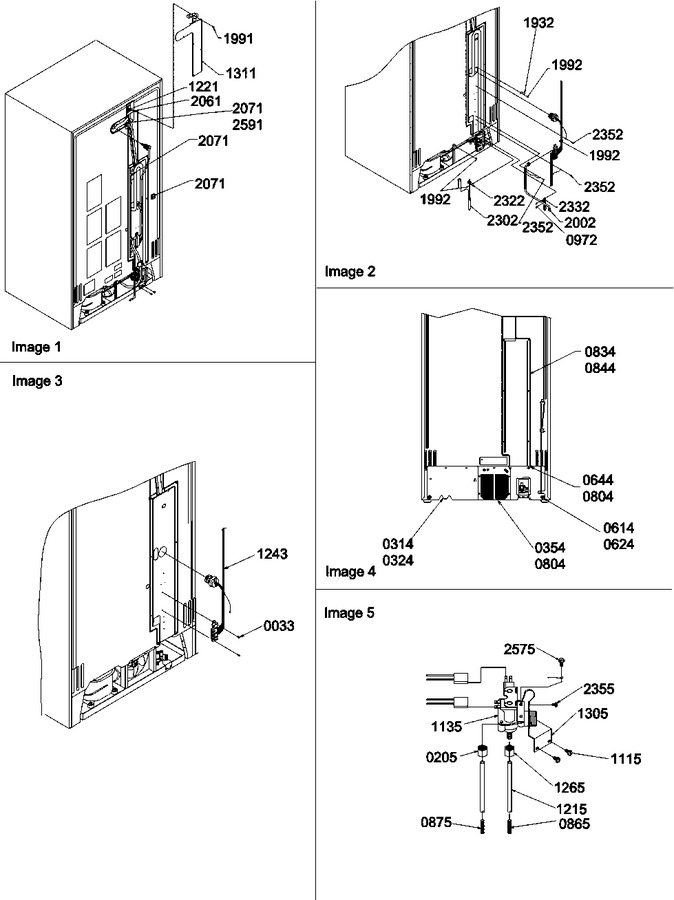

Diagram for SXD524VW (BOM: P1320401W W)
