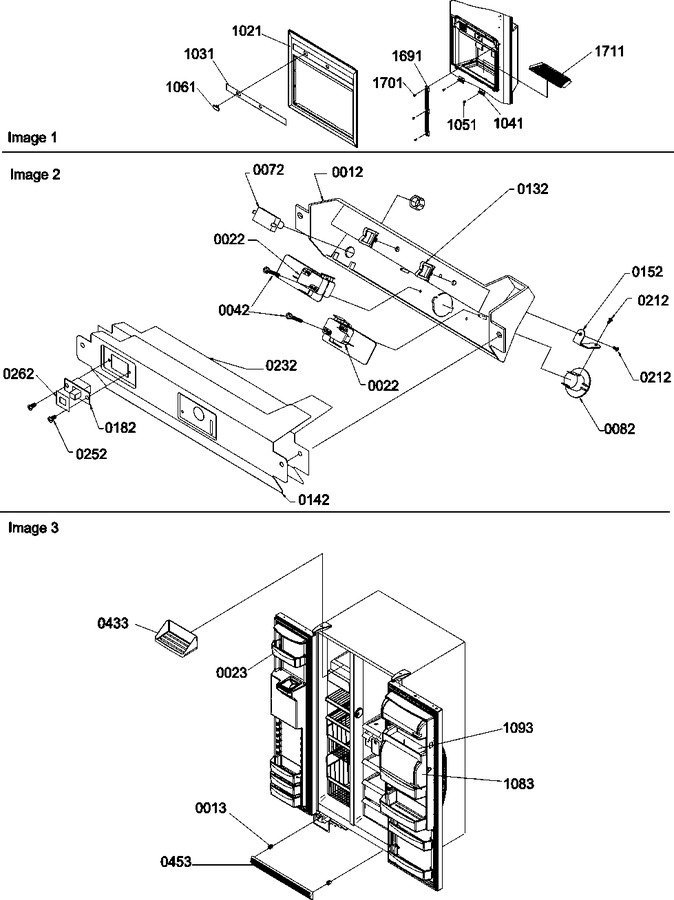

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10323305		Bracket, Elec Mtg		Appelez-nous	-
13	M0117303		Clip, Grille				$ 5.65
22	12419601		Switch, Limit		Appelez-nous	-
23	12311803		Shelf, Frz Door		Appelez-nous	-
42	M0237809		Screw, T.f.		Appelez-nous	-
72	10166101		Switch-light Cavity				$ 6.49
82	D7845102		Socket, Lamp		Appelez-nous	-
132	B5667304		Wire Clip		Appelez-nous	-
142	10131805		Cover, Elec. Brkt		Appelez-nous	-
152	10295701		Bracket, Socket Mtg		Appelez-nous	-
182	10492402		Switch, Crushed/cube		Appelez-nous	-
212	M0230015		Screw		Appelez-nous	-
232	10419403		Insulation,disp Elec Brkt		Appelez-nous	-
252	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
262	10877104		Cover-switch		Appelez-nous	-
433	10870802		Shelf, Ice Cream		Appelez-nous	-
453	12321807		Assy, Toe Grille (white)		Appelez-nous	-
1021	12280004		Facade-w Disp		Appelez-nous	-
1031	10984645		Insert, Facade (white)		Appelez-nous	-
1051	M0216547		Screw		Appelez-nous	-
1061	12036401		Cap-switch Wh		Appelez-nous	-
1691	12335602		Extension, Cavity		Appelez-nous	-
1701	M0216517		Screw		Appelez-nous	-
1711	D7750603		Grille, Sump (white)		Appelez-nous	-
