SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assy


04 - Drain System, Rollers, And Evap Assy


05 - Facade Dispenser Cover, Elec Brkt Assy


06 - Freezer Door

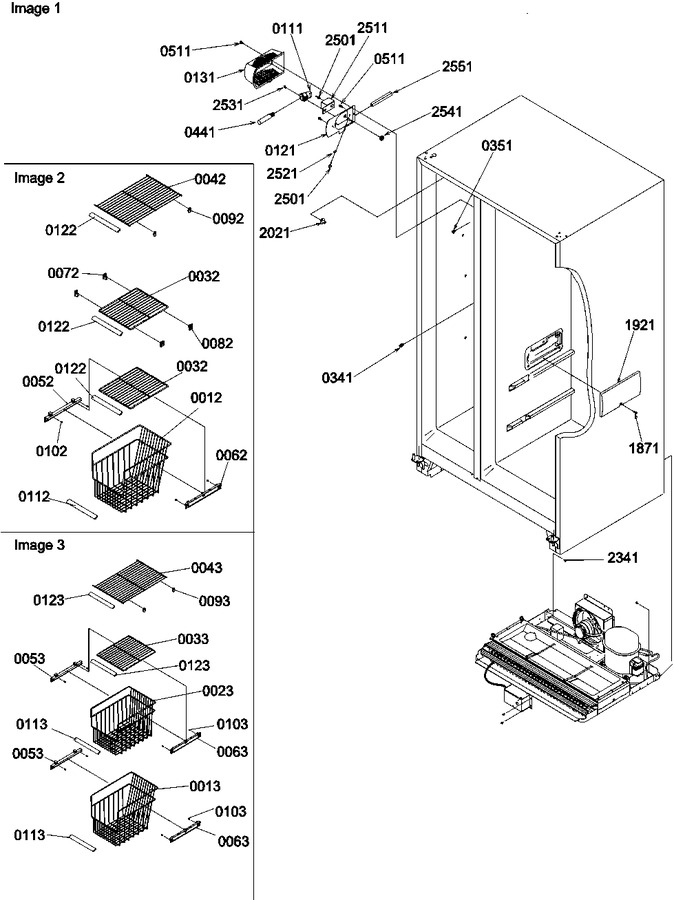

07 - Freezer Shelves And Lights


08 - Ice Bucket Auger, Ice Maker And Parts


09 - Ice Maker/control Assy


10 - Machine Compartment & Muffler Assy


11 - Refrigerator Door, Door Trim And Handles


12 - Shelves, Lights, And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12314701		Basket, Frz 13``		Appelez-nous	-
32	12353305		Shelf, Sta Frz		Appelez-nous	-
42	12363402		Shelf, Sta Frz		Appelez-nous	-
52	12015101		Rail, Shelf (lt)		Appelez-nous	-
62	10972801		Rail, Shelf (rt)		Appelez-nous	-
72	12015002		Support, Shelf (lt)				$ 7.38
82	WP10941102		Support, Shelf (rt)				$ 11.81
92	C8973801		Support, Frz Shelf				$ 8.35
102	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
111	D7845102		Socket, Lamp		Appelez-nous	-
112	12314101		Trim, Basket/shelf		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
122	12314102		Trim, Basket/shelf		Appelez-nous	-
131	D7786603		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
441	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
1871	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
1921	Y10270101		Cover-light		Appelez-nous	-
2021	M0560005		Support		Appelez-nous	-
2341	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
2501	A4539626		Pop Rivet		Appelez-nous	-
2511	D7844902		Socket Cover		Appelez-nous	-
2521	M0320910		Term		Appelez-nous	-
2531	M0213129		Screw		Appelez-nous	-
2541	A4554813		Snap Bushing		Appelez-nous	-
2551	10250002		Cover, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
