Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7792002 Handle Assy, Black Appelez-nous -
2 D7792102 Handle Assy, Black Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

7 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 13.05

8 C8972402 Stop, Door Appelez-nous -
9 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

10 D7792202 Trim Upper Frz Door K Appelez-nous -
11 D7792402 Trim Center Frz Appelez-nous -
12 D7792702 Lower Trim Frz Door (b) Appelez-nous -
13 D7793002 Retainer, Trim Appelez-nous -
14 D7793102 Retainer, Trim Appelez-nous -
15 D7814701 Retainer, Vert Trim Appelez-nous -
16 D7814801 Trim Appelez-nous -
17 D7815101 Trim, Fz Dr. Top Appelez-nous -
18 D7815201 Trim Appelez-nous -
19 D7837401 Support, Handle Appelez-nous -
20 M0213815 Screw Appelez-nous -
21 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

22 D7790801 Nut, Door Stop Appelez-nous -
23 M0219717 Screw Appelez-nous -
24 R0195038 Tape, Double Back, Trim Door T Appelez-nous -
25 C8976001 Insulator, Hinge Cover Appelez-nous -
26 C8987901 Foil, Hinge Cover Appelez-nous -
27 D7757803 Top Hinge Assy Appelez-nous -
28 D7789501 Cover, Hinge Appelez-nous -
29 M0202325 Screw Appelez-nous -
30 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

31 B8389001 Shim, Top Hinge Appelez-nous -
32 B8384101 Connector-6 Pin Appelez-nous -
33 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

34 D7748101 Harness Appelez-nous -
35 B8386702 Kit,btm Hinge Shim Appelez-nous -
35 B8386701 Kit,btm Hinge Shim Appelez-nous -
37 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

38 D7757703 Hinge Assy Appelez-nous -
39 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 4.27

40 M0246258 Screw Appelez-nous -
41 B8387702 Shim, Door Closure Appelez-nous -
42 B8387701 Shim, Door Closure Appelez-nous -
43 WP489399 Screw   (Replaces: M0233103) Special Order $ 7.30

44 A3012530 Tubing Plastic Appelez-nous -
NI R0164235 Door Hinge Assy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

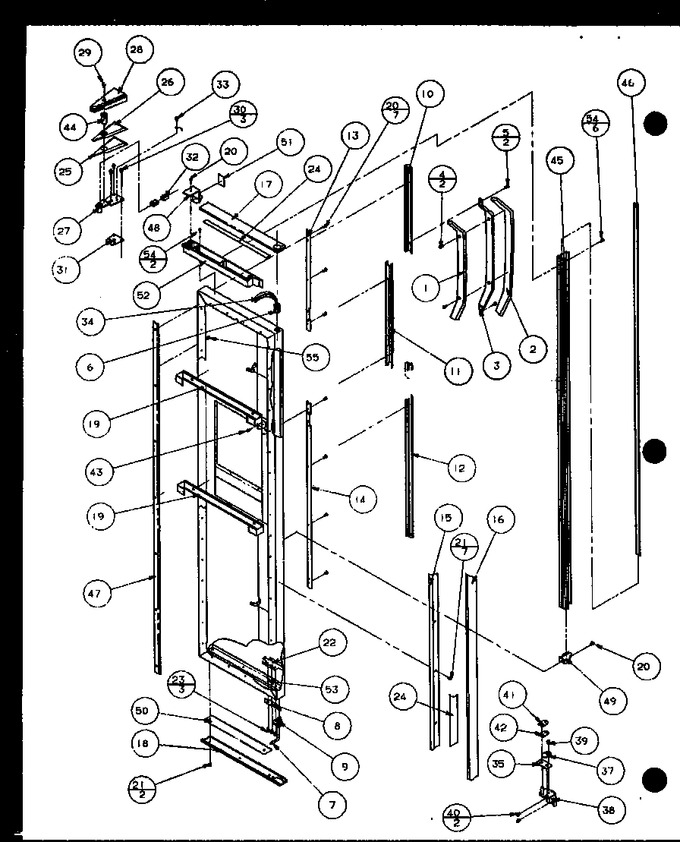

Diagram for SXPD20H (BOM: P7836029W)
