Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7792002 Handle Assy, Black Appelez-nous -
2 D7792102 Handle Assy, Black Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 C8965901 Bushing, Top Appelez-nous -
7 C8972401 Stop, Door (blk) Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

9 D7790801 Nut, Door Stop Appelez-nous -
10 D7792307 Trim Upper Ref Door K Appelez-nous -
11 D7792602 Center Trim, Ref Door Appelez-nous -
12 D7792802 Lower Trim Ref Door K Appelez-nous -
13 D7793202 Ref. Trim, Retainer Appelez-nous -
14 D7814701 Retainer, Vert Trim Appelez-nous -
15 D7814801 Trim Appelez-nous -
16 D7814901 Trim Ref. Dr. Top Appelez-nous -
17 D7815001 Trim Appelez-nous -
18 M0213815 Screw Appelez-nous -
19 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

20 M0219717 Screw Appelez-nous -
21 R0195037 Tape Kit Appelez-nous -
22 D7837402 Support, Handle Appelez-nous -
23 M0202325 Screw Appelez-nous -
24 D7789501 Cover, Hinge Appelez-nous -
25 D7757803 Top Hinge Assy Appelez-nous -
26 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

27 B8389001 Shim, Top Hinge Appelez-nous -
28 B8387702 Shim, Door Closure Appelez-nous -
28 B8387701 Shim, Door Closure Appelez-nous -
29 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 4.27

30 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

31 D7757704 Hinge Assy Bottom Appelez-nous -
32 B8386702 Kit,btm Hinge Shim Appelez-nous -
32 B8386701 Kit,btm Hinge Shim Appelez-nous -
34 M0246258 Screw Appelez-nous -
35 C8984302 Thinplate K Appelez-nous -
36 C8972302 Shim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

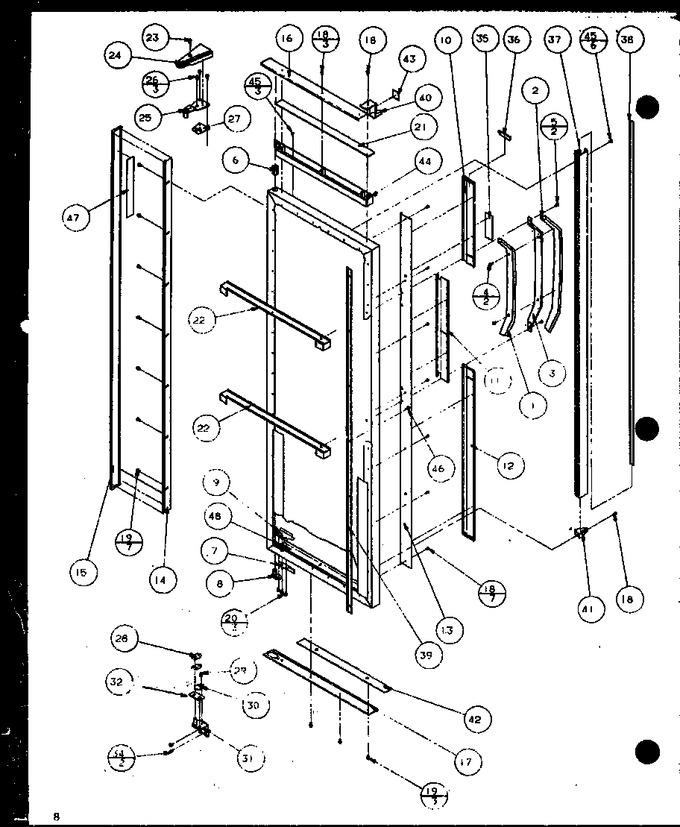

Diagram for SXPD20H (BOM: P7836029W)
