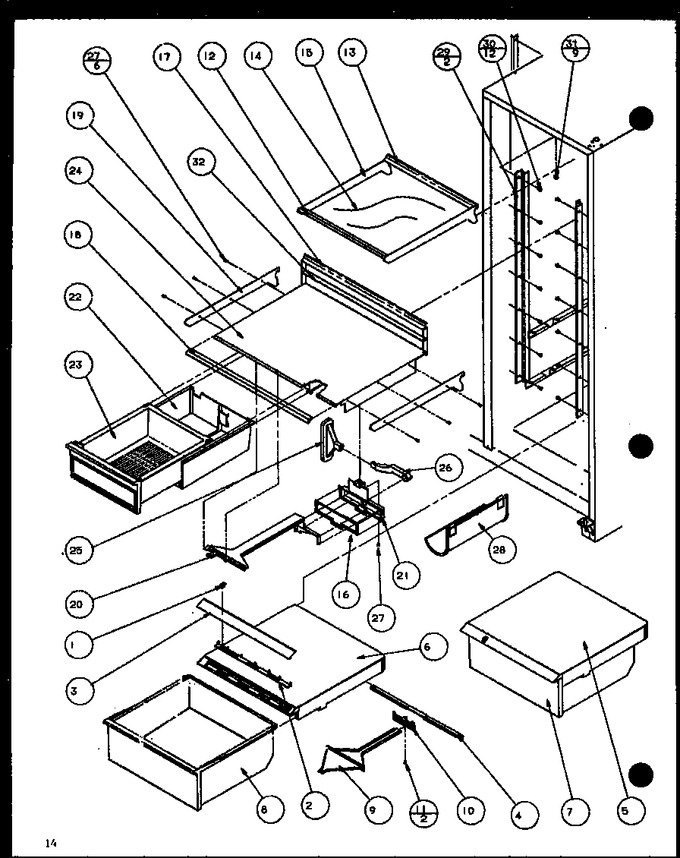

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616619 | Trim |
|
- | |||||
| 4 | D7764101 | Damper Humidity |
|
- | |||||
| 5 | D7781901 | Crisper Top |
|
- | |||||
| 6 | D7813601 | Net-top Crisper |
|
- | |||||
| 7 | D7817203 | Pan-fruit |
|
- | |||||
| 8 | D7782006 | Crisper Pan |
|
- | |||||
| 9 | D7782202 | Slide Crisper Cont |
|
- | |||||
| 9 | D7782201 | Slide Crisper Cont. |
|
- | |||||
| 10 | D7807601 | Support |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | C8913513 | Trim, Front Shelf |
|
- | |||||
| 13 | C8913606 | Trim, Glass Shelf Rear |
|
- | |||||
| 14 | D7421245 | Shelf, Glass A |
|
- | |||||
| 15 | D7788404 | Frame, Cantilever Shelf |
|
- | |||||
| 16 | A3030305 | Gasket-per Ft |
|
- | |||||
| 17 | C8831812 | Trim, Rear |
|
- | |||||
| 18 | C8913514 | Trim, Front |
|
- | |||||
| 19 | D7600042 | Side Rail |
|
- | |||||
| 20 | D7818001 | Slide M.k. Control |
|
- | |||||
| 21 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 22 | D7817902 | Sleeve, M.k V |
|
- | |||||
| 23 | D7814002 | Pan-meat |
|
- | |||||
| 24 | D7817801 | Top Meat Keeper |
|
- | |||||
| 25 | D7788001 | Grommet, Mk |
|
- | |||||
| 26 | D7788101 | Duct, M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547603 | Rack, Bottle |
|
- | |||||
| 29 | D7789804 | Ladder Cantilever |
|
- | |||||
| 29 | D7789803 | Ladder Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 32 | M0275163 | Tape Per Roll |
|
- | |||||
| NI | D7714646 | Glass Shelf Assy |
|
- | |||||
| NI | R0179112 | Crisper Top Assy |
|
- | |||||
| NI | R0179111 | Crisper Top Assy |
|
- |
