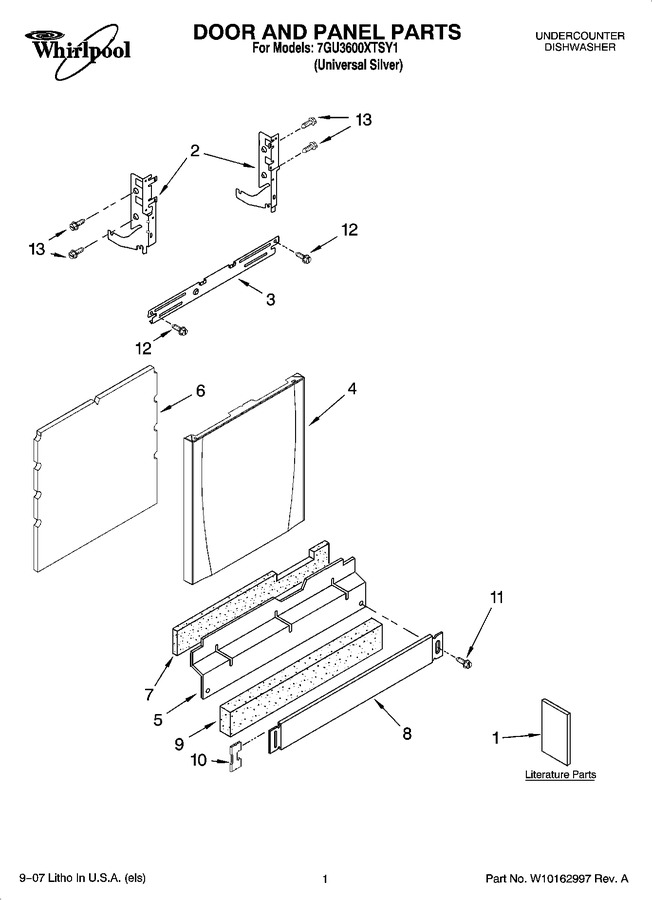

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102729		Instructions, Installation		Appelez-nous	-
1	W10102745		Guide, Use & Care		Appelez-nous	-
1	W10102727		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	8537069		Panel Front (stainless)		Appelez-nous	-
5	W11763736		Access Panel (includes Item 7) (black)   (Replaces: 8558256)			Immediately	$ 42.25
6	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 96.23
7	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 43.30
8	W10871196		Toe Panel (includes Items 9 & 10) (black)   (Replaces: 8558252)				$ 174.04
9	W10831329		Insulation, Toe Panel   (Replaces: W10073550)			Immediately	$ 43.30
10	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
11	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
