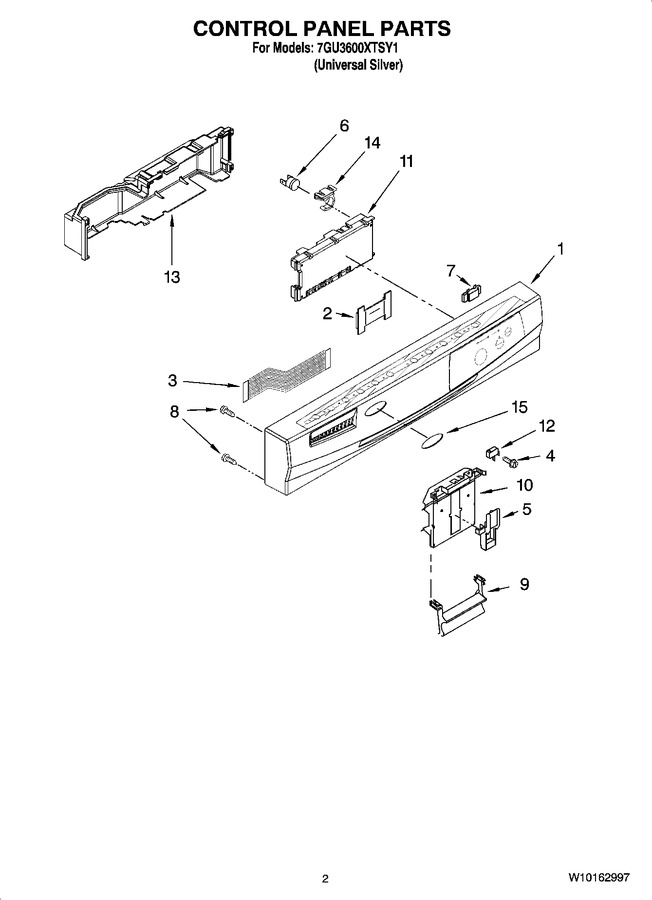

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10102483 | Console Asm. (includes Active Overlay & Insert) (silver) |
|
- | |||||
| 2 | 8535571 | Board, Interconnect |
|
$ 38.76 | |||||
| 3 | 8535412 | Cable, Ribbon |
|
- | |||||
| 4 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 | ||||
| 5 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 101.28 | ||||
| 6 | W10258275 | Fuse, Thermal Electronic (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 7 | WP8269206 | Display, Dual Digit (Replaces: 8269206) |
|
$ 137.42 | |||||
| 8 | WPW10348409 | Screw (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 9 | 8575334 | Handle, Latch (grey) |
|
$ 101.00 | |||||
| 10 | 8193882 | Bolt, Latch (Replaces: 8524476) |
|
Immediately | $ 114.47 | ||||
| 11 | WPW10084141 | Control, Electronic (Replaces: W10084141) |
|
Immediately | $ 313.68 | ||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 | ||||
| 13 | W10082957 | Cover, Control Shield |
|
- | |||||
| 14 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 15 | 9757613 | Nameplate |
|
$ 121.14 |
