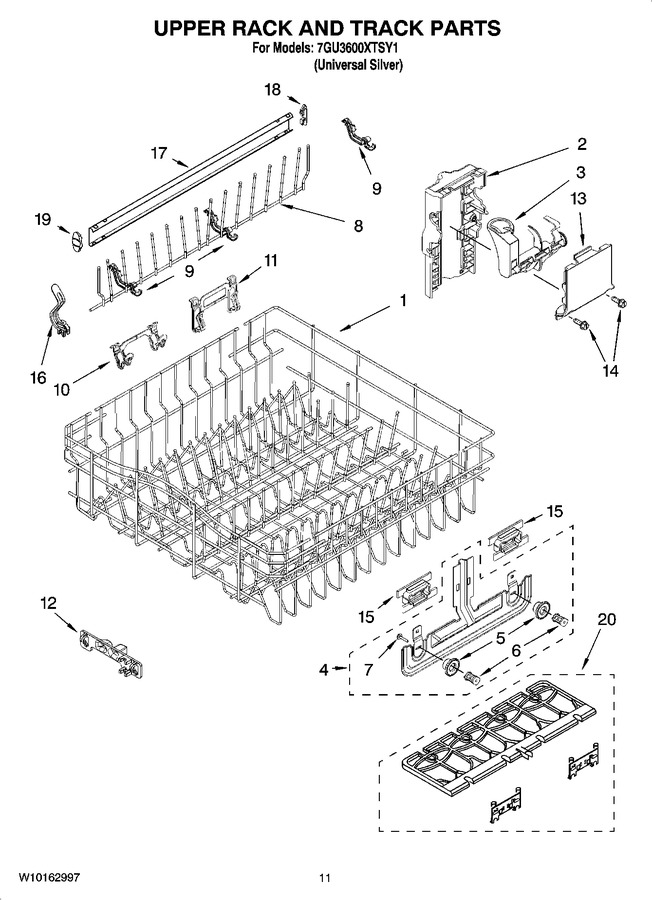

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: 8539235) |
|
Immediately | $ 179.58 | ||||
| 2 | 8193741 | Housing, Adjuster (Replaces: 8531344) |
|
$ 101.10 | |||||
| 3 | 8539122 | Actuator, Adjuster (right) |
|
$ 48.69 | |||||
| 3 | 8539121 | Actuator, Adjuster (left) |
|
$ 47.04 | |||||
| 4 | W10728849 | Adjuster Assembly (Replaces: 8268654) |
|
$ 184.96 | |||||
| 5 | WP3385088 | Wheel (Replaces: 3385088) |
|
Immediately | $ 12.40 | ||||
| 6 | WP8268703 | Axel, Adjuster (Replaces: 8268703) |
|
Immediately | $ 11.28 | ||||
| 7 | 8281156 | Screw |
|
$ 5.83 | |||||
| 8 | W10727426 | Tine Row (Replaces: 9744566) |
|
Immediately | $ 85.10 | ||||
| 9 | WP8539190 | Clip, Pivot (Replaces: 8539190) |
|
$ 88.99 | |||||
| 10 | 8562049 | Clip, Side Utensil |
|
$ 5.51 | |||||
| 11 | 8562056 | Clip, Side (light Items) |
|
$ 5.51 | |||||
| 12 | WP8539119 | Positioner, Dual (Replaces: 8539119) |
|
$ 109.83 | |||||
| 13 | 8193741 | Cover, Adjuster (Replaces: 8531346) |
|
$ 101.10 | |||||
| 14 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 15 | 8268738 | Positioner, Arm |
|
$ 42.48 | |||||
| 16 | WP8539113 | Clip, No-flip (Replaces: 8539113) |
|
$ 11.43 | |||||
| 17 | WP3385089 | Track Rack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 18 | WP8565925 | Stop, Track (Replaces: 8565925) |
|
Immediately | $ 6.87 | ||||
| 19 | WP8565925 | Stop Track Removeable (Replaces: 8562015) |
|
Immediately | $ 6.87 | ||||
| 20 | WPW10082810 | Cupshelf, Assembly (Replaces: W10082810) |
|
$ 115.41 |
