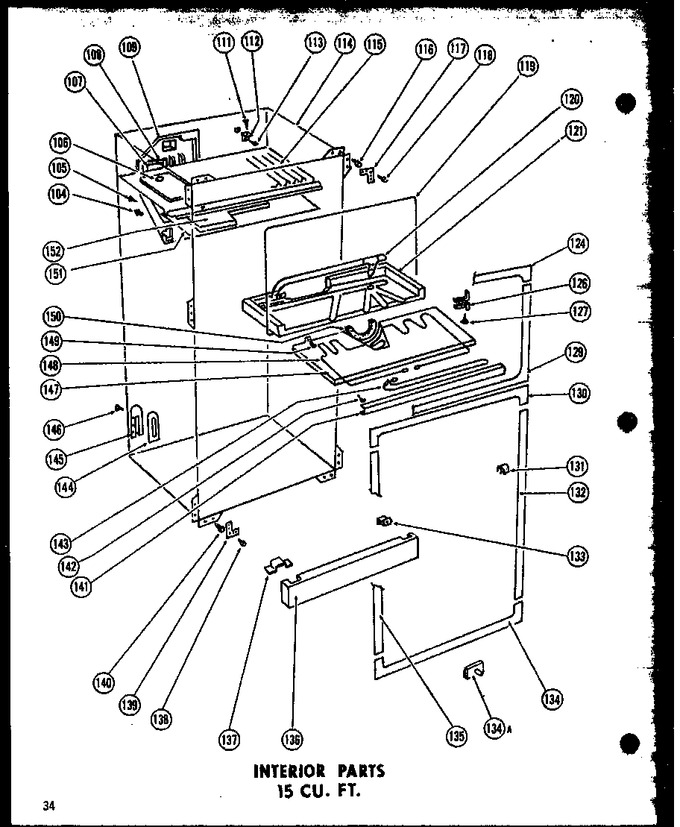

01 - Interior Parts 15 Cu. Ft.


02 - Interior Parts 15 Cu. Ft.


03 - Interior Parts 15 Cu. Ft.


04 - Page 1


05 - Sealed System Parts 15 Cu. Ft.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
104	A0288701		Grommet		Appelez-nous	-
105	M0211530		Screw		Appelez-nous	-
106	A3069101		Plug		Appelez-nous	-
107	B5609201		Insulation		Appelez-nous	-
108	M0900201		Gasket		Appelez-nous	-
109	D7048102		Air Duct		Appelez-nous	-
111	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
112	M0116901		Clip		Appelez-nous	-
113	M0211530		Screw		Appelez-nous	-
114	D7077302		Complete Assembly, Liner Tubin		Appelez-nous	-
115	D7025402		Bottom Fz		Appelez-nous	-
116	A0381801		Grommet		Appelez-nous	-
117	C3569501		Gussett		Appelez-nous	-
118	M0282009		Nut				$ 14.07
119	C3627101		Heater, Fz Flange		Appelez-nous	-
121	D7015505		Drain Block		Appelez-nous	-
124	D3917001		Breaker Frame		Appelez-nous	-
126	B5645601		Angle,center Mullion		Appelez-nous	-
126	B5645602		Angle,center Mullion		Appelez-nous	-
127	M0225431		Screw		Appelez-nous	-
129	D3916801		Breaker Frame		Appelez-nous	-
130	D3916701		Breaker Frame, Top Ref		Appelez-nous	-
132	D3914515		Breaker Frame		Appelez-nous	-
133	M0117301		Clip, Grille		Appelez-nous	-
134	D3916301		Breaker Frame		Appelez-nous	-
134	B0592002		Switch		Appelez-nous	-
135	D3914516		Breaker Frame		Appelez-nous	-
136	D7070202		Grille-toe		Appelez-nous	-
137	B5641301		Grille-toe		Appelez-nous	-
138	M0250531		Screw		Appelez-nous	-
139	C3569505		Gussett		Appelez-nous	-
140	A0381801		Grommet		Appelez-nous	-
141	C3638701		Center Mullion		Appelez-nous	-
142	M0225431		Screw		Appelez-nous	-
143	B5636001		Drier, Mullion		Appelez-nous	-
144	A0382801		Gasket		Appelez-nous	-
145	A0382904		Cover Plate -g		Appelez-nous	-
146	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 8.25
147	D3972202		Top K		Appelez-nous	-
148	D7058301		Heater-ref Top K		Appelez-nous	-
149	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
150	A3030313		Gasket (per Foot)		Appelez-nous	-
151	A3126001		Barrier		Appelez-nous	-
152	B5629801		Insulation		Appelez-nous	-
NI	M0580001		Grommet, Screw		Appelez-nous	-
NI	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
NI	A3108801		Cover,terminal		Appelez-nous	-
NI	A3080001		Plug, Button (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
