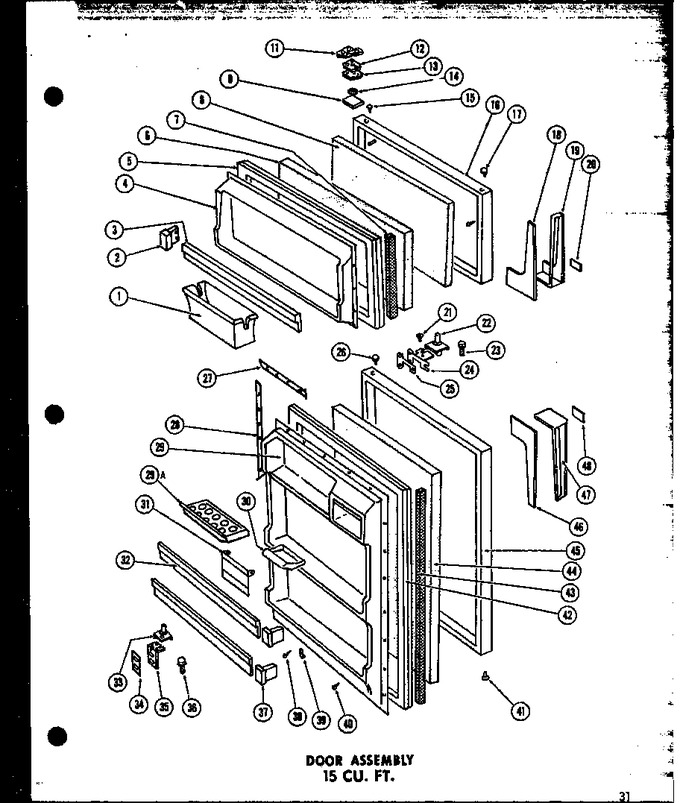

SELECT A DIAGRAM

01 - Interior Parts 15 Cu. Ft.


02 - Interior Parts 15 Cu. Ft.


03 - Interior Parts 15 Cu. Ft.


04 - Page 1


05 - Sealed System Parts 15 Cu. Ft.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	D3976707		Retainer A		Appelez-nous	-
2	D3976808		Support		Appelez-nous	-
3	D3976703		Package Retainer		Appelez-nous	-
4	D7074703		Inner Dr Panel		Appelez-nous	-
5	D3928204		Gasket		Appelez-nous	-
6	B0565609		Insulation		Appelez-nous	-
7	B0523564		Insulation Batt		Appelez-nous	-
8	B0566707		Insulation		Appelez-nous	-
9	212643		Sealer Ft. A / K   (Replaces: M0275507)			Immediately	$ 82.13
11	B5640701		Top Hinge		Appelez-nous	-
12	A3143701		Shim		Appelez-nous	-
12	A3143703		Shim, Top Hinge .064		Appelez-nous	-
12	A3143702		Shim		Appelez-nous	-
13	A3139701		Tap Strip		Appelez-nous	-
14	M0270522		Washer		Appelez-nous	-
15	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
16	D7057701		Outer Door Shell, Fz, White		Appelez-nous	-
17	B5642301		Bushing, Hinge Pin		Appelez-nous	-
18	D7072801		Handle Pad Frz Door		Appelez-nous	-
19	D7073901		Handle		Appelez-nous	-
20	C3578002		Nameplate		Appelez-nous	-
21	M0226931		Screw		Appelez-nous	-
22	B5640401		Center Hinge Assy		Appelez-nous	-
23	M0205641		Screw		Appelez-nous	-
24	B5640501		Center Hinge Assy		Appelez-nous	-
25	A3143502		Shim K		Appelez-nous	-
25	A3143501		Shim K		Appelez-nous	-
25	A3143503		Shim K		Appelez-nous	-
26	B5642301		Bushing, Hinge Pin		Appelez-nous	-
27	D3928102		Retainer Gasket		Appelez-nous	-
28	D3928105		Retainer Gasket		Appelez-nous	-
28	D3928104		Retainer Gasket		Appelez-nous	-
29	D7045501		Panel		Appelez-nous	-
30	D3799801		Butter Tray		Appelez-nous	-
31	D7026401		Butter Door		Appelez-nous	-
32	D3976703		Package Retainer		Appelez-nous	-
33	B5640901		Hinge Kit		Appelez-nous	-
34	A3143602		Shim		Appelez-nous	-
34	A3143603		Shim		Appelez-nous	-
34	A3143601		Shim		Appelez-nous	-
35	B5640201		Hinge Kit		Appelez-nous	-
36	M0246159		Screw		Appelez-nous	-
37	D3976806		Support		Appelez-nous	-
37	D3976805		Support		Appelez-nous	-
38	M0205518		Screw		Appelez-nous	-
39	A3139801		Stop Door		Appelez-nous	-
40	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
41	M0310601		Plug		Appelez-nous	-
42	D3928203		Gasket		Appelez-nous	-
43	B0523564		Insulation Batt		Appelez-nous	-
44	B5639606		Insulation		Appelez-nous	-
45	D7057704		Outer Door Shell, Refrig, Whit		Appelez-nous	-
46	D7072801		Handle Pad Frz Door		Appelez-nous	-
47	D7073901		Handle		Appelez-nous	-
NI	A3084701		Pivot		Appelez-nous	-
NI	M0211516		Screw A K		Appelez-nous	-
NI	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
NI	A3139801		Stop Door		Appelez-nous	-
NI	B0577902		Tie Bar		Appelez-nous	-
NI	A3079202		Strike, Light Switch		Appelez-nous	-
NI	A3069801		Support Bar Plate		Appelez-nous	-
NI	M0257231		Screw		Appelez-nous	-
NI	M0248218		Screw		Appelez-nous	-
NI	M0310601		Plug		Appelez-nous	-
NI	M0289802		Nut		Appelez-nous	-
NI	M0241118		Screw-sm		Appelez-nous	-
NI	M0205518		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
