04 - Page 1

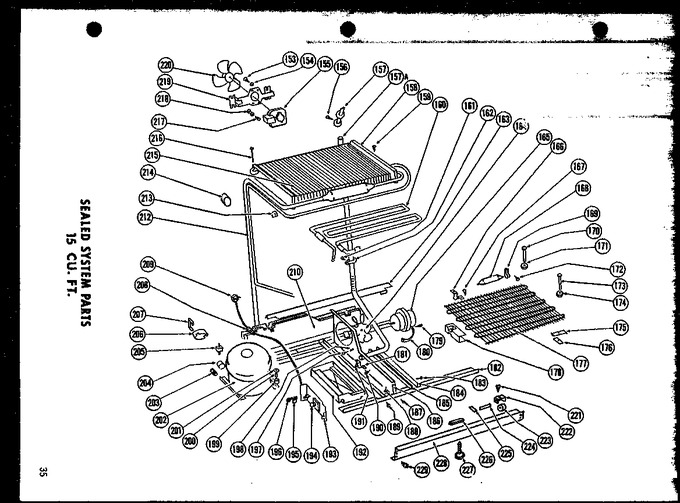

05 - Sealed System Parts 15 Cu. Ft.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
153	M0202642		Screw		Appelez-nous	-
154	M0272605		Washer		Appelez-nous	-
155	C3575909		Motor		Appelez-nous	-
156	M0214617		Sems		Appelez-nous	-
157	B5638801		Tube, Drain		Appelez-nous	-
157	C3630902		Elbow		Appelez-nous	-
158	D7025320		Evaporator		Appelez-nous	-
159	M0214731		Screw		Appelez-nous	-
160	C3626701		Heater Def K		Appelez-nous	-
161	M0211831		Screw		Appelez-nous	-
162	M0102316		Clamp, Drier		Appelez-nous	-
163	C3603702		Angle, Back		Appelez-nous	-
164	B0598501		Blade, Fan		Appelez-nous	-
165	833697		Motor, Fan   (Replaces: B5646204)			Immediately	$ 88.15
166	A3054501		Clip-cond		Appelez-nous	-
167	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
168	WPB2150504		Drier   (Replaces: B2150501)				$ 136.98
169	M0104001		Clamp,drier		Appelez-nous	-
170	M0257037		Sems Fastner		Appelez-nous	-
171	A3013906		Spacer		Appelez-nous	-
172	M0218116		Screw		Appelez-nous	-
173	M0257039		Sems Fastner		Appelez-nous	-
174	A3013907		Spacer		Appelez-nous	-
175	A3085401		Bracket, Support		Appelez-nous	-
176	M0286003		Nut A		Appelez-nous	-
177	D7035701		Condenser		Appelez-nous	-
178	B0544101		Spacer		Appelez-nous	-
179	M0220101		Screw		Appelez-nous	-
180	B0598701		Bracket, Cond Motor		Appelez-nous	-
181	A3116301		Deflector		Appelez-nous	-
182	C3617702		Angle		Appelez-nous	-
183	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
184	B0599701		Retainer		Appelez-nous	-
185	B0599603		Seal		Appelez-nous	-
186	C3617601		Fan Shroud		Appelez-nous	-
187	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
188	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
189	M0233643		Screw		Appelez-nous	-
190	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
191	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
192	D7001001		Pan, Drain		Appelez-nous	-
193	C3588103		Bracket		Appelez-nous	-
194	D7004106		Timer, Defrost		Appelez-nous	-
195	A3108701		Retaining Clamp Tiner		Appelez-nous	-
196	M0102406		Clamp		Appelez-nous	-
197	M0211532		Screw		Appelez-nous	-
198	M0221132		Screw		Appelez-nous	-
199	A3026101		Grommet K		Appelez-nous	-
200	A3072001		Sleeve K		Appelez-nous	-
201	M0590101		Washer, Nylon K		Appelez-nous	-
201	M0274008		Washer,fibre		Appelez-nous	-
202	D3871701		Compresssor		Appelez-nous	-
202	D3871702		Comp, Tec. 1/4 H.p. 50/60 Cycl		Appelez-nous	-
203	A3043601		Spring K		Appelez-nous	-
204	C3552901		Overload		Appelez-nous	-
205	C3553401		Relay		Appelez-nous	-
206	B0551801		Terminal Cover		Appelez-nous	-
207	A3041801		Strap K		Appelez-nous	-
208	A0319701		Strain Relief		Appelez-nous	-
209	C3643907		Power Cord		Appelez-nous	-
210	B5641201		Back, Mach Compt K		Appelez-nous	-
212	D7030301		Heat Exchanger		Appelez-nous	-
213	A4568701		Grommet		Appelez-nous	-
214	B5636401		Thermostat K		Appelez-nous	-
215	D7025301		Evaporator		Appelez-nous	-
216	M0010510		X$x Nail		Appelez-nous	-
217	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
218	YA0381501		Clip, Waterline		Appelez-nous	-
219	C3536203		Bracket		Appelez-nous	-
220	B5622101		Fan Blade		Appelez-nous	-
NI	A3063101		Pad A		Appelez-nous	-
NI	YA0381501		Clip, Waterline		Appelez-nous	-
NI	A3128101		Grommet		Appelez-nous	-
NI	M0102506		Clamp		Appelez-nous	-
NI	A3140801		Clip K		Appelez-nous	-
NI	A0381401		Eyelet K		Appelez-nous	-
NI	M0274018		Washer		Appelez-nous	-
NI	A3125701		Stop,drain Pan		Appelez-nous	-
NI	M0230015		Screw		Appelez-nous	-
NI	B5629801		Insulation		Appelez-nous	-
