01 - Cooktop Parts

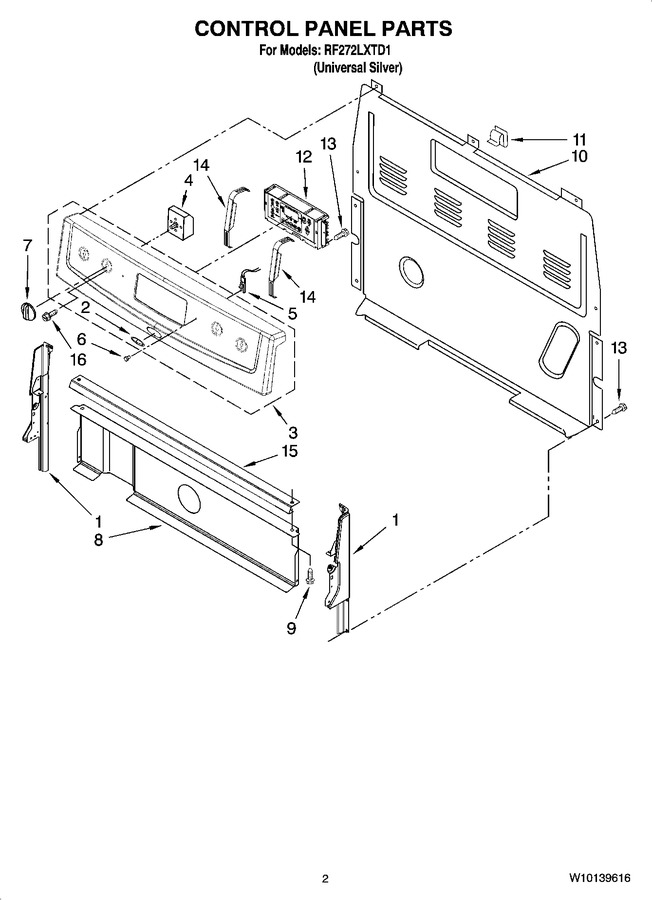

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10009080) |
|
$ 146.50 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10009090) |
|
$ 40.44 | |||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | W10127721 | Panel, Control |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (lr/rr (silver)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3149400 | Switch, Infinite (lf/rf (orange)) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | WP8523265 | Light, Indicator Surface Unit (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 21.24 | ||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 | |||||
| 12 | W10876180 | Control, Range (Replaces: W10108230) |
|
$ 418.92 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 15 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 |
