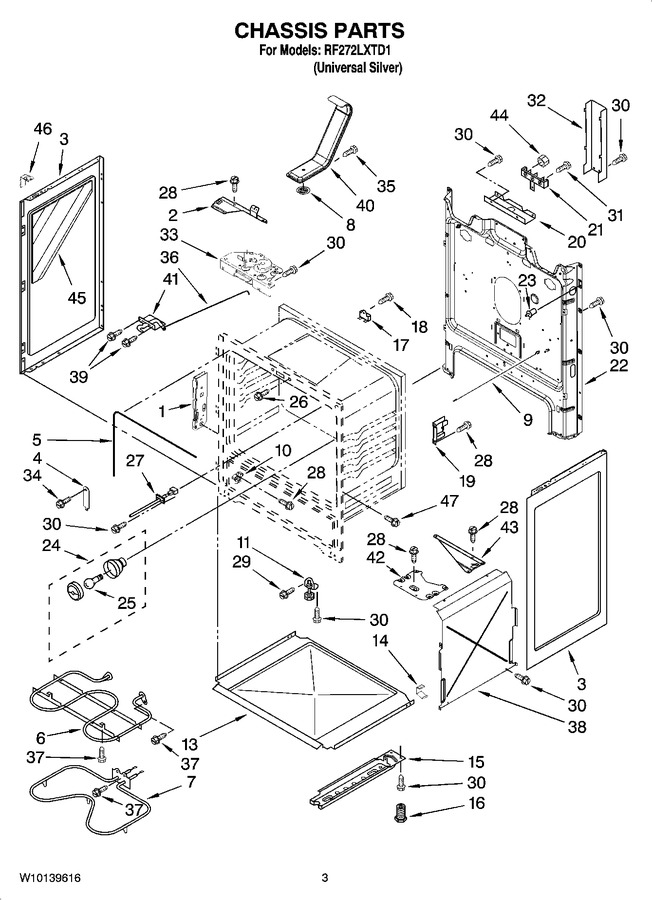

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Bracket-mounting (Replaces: 9760407) |
|
Immediately | $ 9.32 | ||||
| 2 | 8273905 | Support, Corner Lr |
|
- | |||||
| 3 | W11730303 | Panel, Side (2) (black) (Replaces: 8053832) |
|
Immediately | $ 178.50 | ||||
| 4 | 9761517 | Clip, Door Mntg (2) |
|
$ 48.11 | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 154.62 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 9758541) |
|
Immediately | $ 71.86 | ||||
| 8 | 9761301 | Screen, Catalyst |
|
$ 147.90 | |||||
| 9 | 9757239 | Rod - Dr Switch |
|
$ 96.37 | |||||
| 10 | WPW10114344 | Glide, Drawer Front (Replaces: W10114344) |
|
Immediately | $ 8.57 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Thermal, Fuse (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: 8273902) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 32 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 139.60 | |||||
| 33 | WPW10107820 | Latch Asy, Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 34 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 35 | WP489491 | Screw (Replaces: 3196566) |
|
$ 7.30 | |||||
| 36 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 38 | W10450380 | Retainer, Insul. (2) (Replaces: 9758238) |
|
- | |||||
| 39 | W11169708 | Screw (2) (Replaces: 3196560) |
|
$ 13.36 | |||||
| 40 | WPW10134285 | Flue (Replaces: 9761299) |
|
Immediately | $ 263.00 | ||||
| 41 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 42 | 3195736 | Support, Front (2) |
|
- | |||||
| 43 | 3195987 | Support, Corner Rr |
|
- | |||||
| 44 | WP112432 | Nut (Replaces: 112432) |
|
$ 8.63 | |||||
| 45 | 9761490 | Insulation, Foil |
|
- | |||||
| 46 | 9761512 | Clip, Mounting |
|
- | |||||
| 47 | 8053915 | Insulation, Vent (Replaces: 8272613) |
|
$ 13.06 | |||||
| 47 | WPW10067840 | Screw (6) (Replaces: W10067840) |
|
$ 8.30 | |||||
| 47 | WPW10208653 | Insulation, Wrap (Replaces: 8272616) |
|
Immediately | $ 55.47 | ||||
| 47 | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 115.11 |
