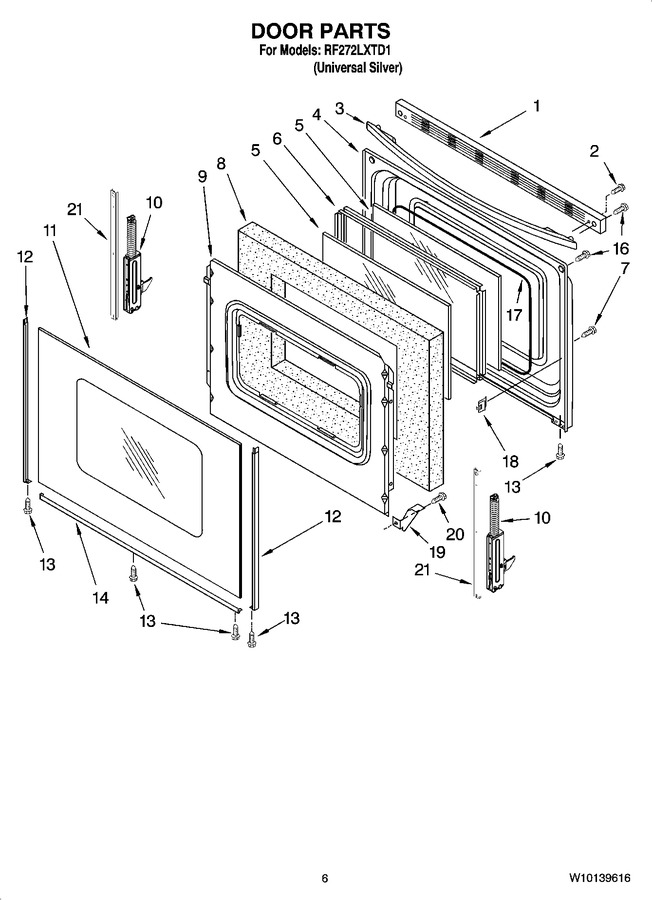

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9762391		Trim, Top   (Replaces: 9762394)				$ 199.02
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 8.69
3	9761983		Handle, Door (black)				$ 116.42
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 355.13
5	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 178.28
6	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 84.86
7	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 96.54
9	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 221.30
10	W10347464		Hinge, Door   (Replaces: 9761496)			Immediately	$ 127.60
11	9761699		Glass, Outer Door		Appelez-nous	-
12	W10761014		Trim, Door Side (black R.h.)   (Replaces: 8523165)			Immediately	$ 72.96
12	W10761018		Trim, Door Side (black L.h.)   (Replaces: 8523171)			Immediately	$ 53.77
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
14	WP8523180		Trim, Lower Door   (Replaces: 8523180)				$ 160.95
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
17	8522414		Seal, Window				$ 160.59
18	3196025		Clip, Glass (6)				$ 20.10
19	3196794		Bracket, Window (2)				$ 24.34
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
21	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 26.36
	WP3196174		Screw (grnd Wire/back)   (Replaces: 3196174)			Immediately	$ 7.82
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 51.44
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3191048		Cleaner, Glass		Appelez-nous	-
	4396923		Pan - Broiler			Immediately	$ 57.82
	W11447673		Anti-tip Kit   (Replaces: W10017440)				$ 31.82
	W10114915		Harness, Wire (cooktop Left)		Appelez-nous	-
	W10114894		Harness, Wire (cooktop Right)		Appelez-nous	-
	W11172524		Harness, Wire (sensor/dr Switch)   (Replaces: W10084660)				$ 206.85
	3184020		Wire, Ground   (Replaces: 8523279)				$ 82.78
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP3196154		Screw   (Replaces: 3196154)				$ 7.82
	W10095540		Harness, Wire (main)		Appelez-nous	-
	313660		Clip, Wire Ground		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 13.61
	8524132		Shield, Wiring		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 89.66
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
