01 - Cooktop, Literature
02 - Control Panel
03 - Unit
04 - Door And Drawer
05 - Oven
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:

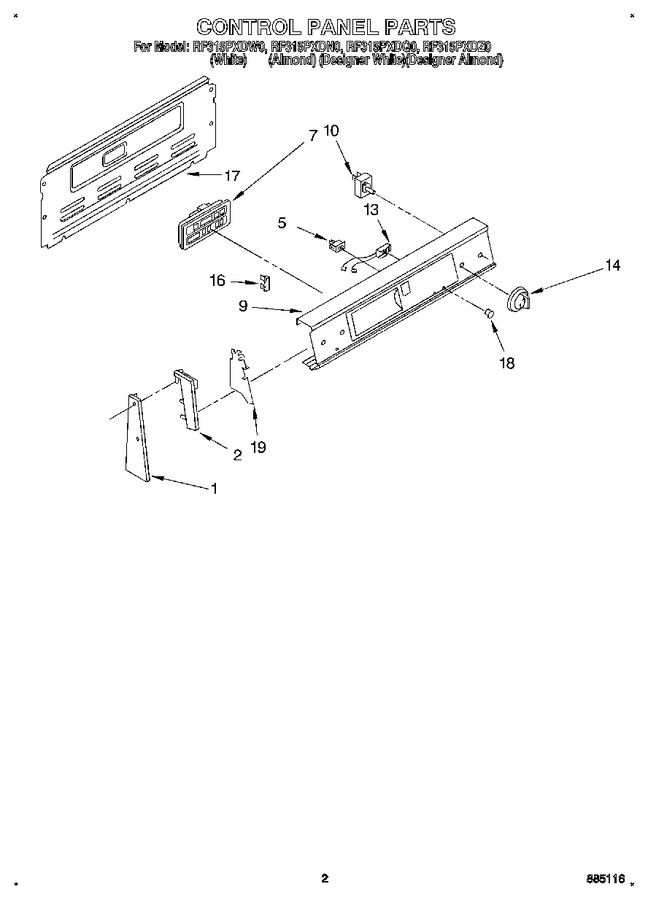

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3169469 | (end Trim, Left) (designer Almond) |
|
- | |||||
| 1 | 3187671 | End Trim, Right (black) |
|
- | |||||
| 1 | 3188992 | End Trim, Right (designer White) |
|
- | |||||
| 1 | 3169468 | End Trim, Right (designer Almond) |
|
- | |||||
| 1 | 3187672 | (end Trim, Left) (black) |
|
- | |||||
| 1 | 3188993 | (end Trim, Left) (designer White) |
|
- | |||||
| 2 | 3187795 | End Cap, Right (designer Almond) |
|
- | |||||
| 2 | 3187793 | End Cap, Right (designer White) |
|
- | |||||
| 2 | 3187791 | End Cap, Right (black) |
|
- | |||||
| 2 | 3187796 | (end Cap, Left) (designer Almond) |
|
- | |||||
| 2 | 3187794 | (end Cap, Left) (designer White) |
|
- | |||||
| 2 | 3187792 | (end Cap, Left) (black) |
|
- | |||||
| 5 | 3182719 | Switch, Rocker (designer Almond) |
|
- | |||||
| 5 | 3182718 | Switch, Rocker (designer White) |
|
- | |||||
| 5 | 3182717 | Switch, Rocker (black) |
|
- | |||||
| 7 | 3187782 | Timer, Erc Control (designer Almond) |
|
- | |||||
| 7 | 3187781 | Timer, Erc Control (designer White) |
|
- | |||||
| 7 | 3187780 | Timer, Erc Control (black) |
|
- | |||||
| 9 | 3189219 | Panel, Control (black) |
|
- | |||||
| 9 | 3188684 | Panel, Control (designer Almond) |
|
- | |||||
| 9 | 3169366 | Panel, Control (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 9 | 3188683 | Panel, Control (designer White) |
|
- | |||||
| 10 | 5500-287 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 10 | 308119 | Switch, Infinite (screw, 8-32 X 1/4 (8)) |
|
- | |||||
| 10 | 5500-287 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 13 | 3169457 | Indicator Light (2) |
|
- | |||||
| 14 | 3188723 | Knob, Infinite (4) (designer Almond) |
|
- | |||||
| 14 | 3188722 | Knob, Infinite (4) (designer White) |
|
- | |||||
| 14 | WP3196231 | Knob, Infinite (4) (black) (Replaces: 3188721) |
|
Immediately | $ 20.95 | ||||
| 16 | 98520 | Screw |
|
- | |||||
| 16 | 3187848 | Fuse, Thermal |
|
- | |||||
| 17 | 3187332 | Rear Cover Control Panel |
|
- | |||||
| 17 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 18 | 313101 | Lens, Amber (2) |
|
- | |||||
| 19 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 19 | 313608 | Shield, Glass (2) |
|
- |
