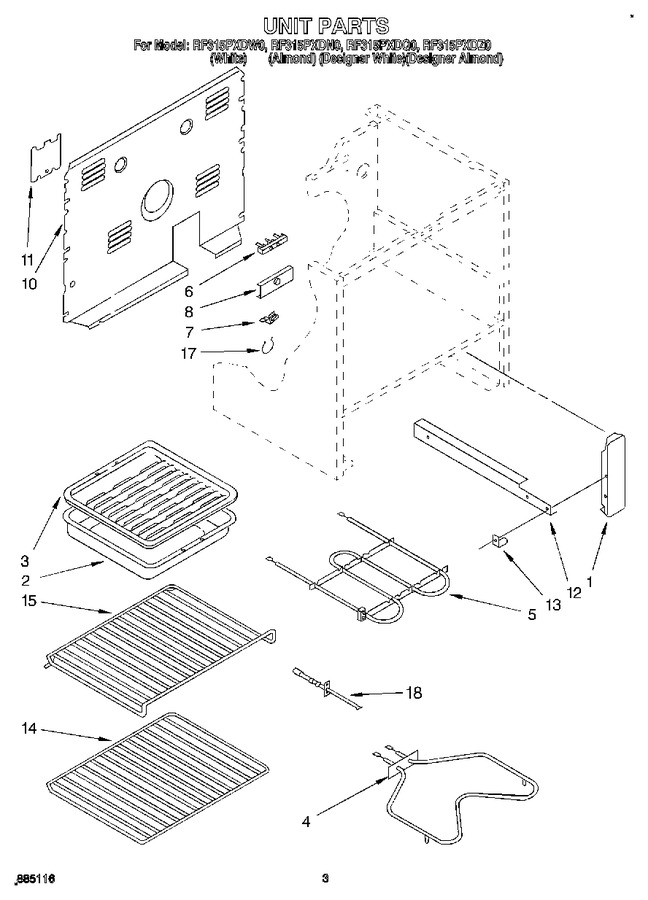

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169420		Bracket, Mounting (2)		Appelez-nous	-
2	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 57.82
3	4396923		Grid, Broiler   (Replaces: 3147563)			Immediately	$ 57.82
4	WP308180		Unit, Bake (240v)   (Replaces: 661170)				$ 107.69
4	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
5	WP660579		(alt.)   (Replaces: 311714)				$ 156.44
5	WP660579		(alt.)   (Replaces: 311713)				$ 156.44
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 156.44
5	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
6	WP112432		Nut (6)   (Replaces: 112432)				$ 7.96
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
7	313660		Clip		Appelez-nous	-
7	308498		Ground Strap		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
8	3150190		Bracket, Service		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.85
10	3148975		Cover, Rear		Appelez-nous	-
11	307972		Cover, Service		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
12	3149255		Rail, Drawer (r.h.)		Appelez-nous	-
12	3149256		Rail, Drawer (l.h.)		Appelez-nous	-
13	3149257		Glide, Drawer (2)		Appelez-nous	-
14	308173		Rack, Oven (straight)		Appelez-nous	-
15	308172		Rack, Offset		Appelez-nous	-
17	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
18	309961		Insulation, Oven Wrap		Appelez-nous	-
18	98520		Screw (2)		Appelez-nous	-
18	3148440		Sensor, Temperature		Appelez-nous	-
18	8273888A		Anti-tip Kit   (Replaces: 814091)				$ 31.07
