SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Unit


04 - Door And Drawer


05 - Oven


06 - Wiring Harness, Optional

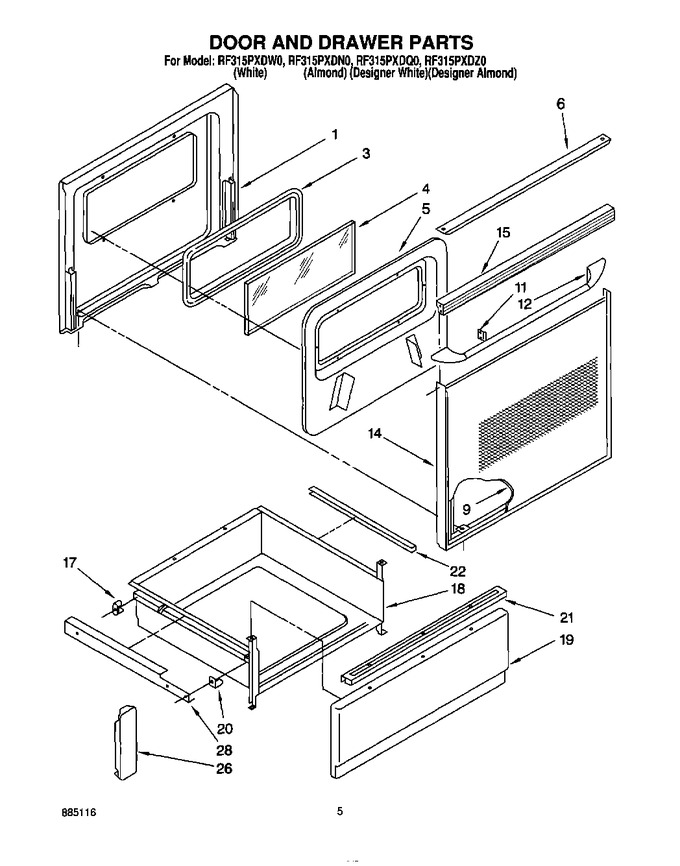

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
3	3148183		Seal, Glass				$ 7.41
4	3169202		Glass, Inner		Appelez-nous	-
5	3185647		Screw, 8-18x3/8 (6)		Appelez-nous	-
5	3148287		Retainer,		Appelez-nous	-
6	3188399		Cap, Top (designer Models Only) (screw (2))		Appelez-nous	-
6	3189002		Cap, Top (designer Models Only) (designer Almond)		Appelez-nous	-
6	3188400		Cap, Top (designer Models Only) (screw (2))		Appelez-nous	-
6	3189001		Cap, Top (designer Models Only) (designer White)		Appelez-nous	-
9	3189263		Outer Glass (designer Almond)		Appelez-nous	-
9	3188739		Outer Glass (black)		Appelez-nous	-
9	3188738		Outer Glass (designer White)		Appelez-nous	-
11	3148282		Clip (2)				$ 8.69
12	3188697		Handle, Door (designer Almond)		Appelez-nous	-
12	3188696		Handle, Door (designer White)		Appelez-nous	-
12	3188695		Handle, Door (black)		Appelez-nous	-
12	WP999367		Handle, Door (screw (2))   (Replaces: 3169474)				$ 7.86
14	3188999		Frame, Door (designer Almond)		Appelez-nous	-
14	3149333		Frame, Door (screw, Bottom (3))				$ 5.33
14	3188998		Frame, Door (designer White)		Appelez-nous	-
14	3188403		Frame, Door (screw, Side (4))		Appelez-nous	-
14	3185918		Frame, Door (screw, Bottom (3))		Appelez-nous	-
14	3188404		Frame, Door (screw, Side (4))		Appelez-nous	-
14	3188997		Frame, Door (black)		Appelez-nous	-
14	3149253		Frame, Door (screw, Side (4))		Appelez-nous	-
15	3188692		Door Top, Vent (black)		Appelez-nous	-
15	3188693		Door Top, Vent (designer White)		Appelez-nous	-
15	3188694		Door Top, Vent (designer Almond)		Appelez-nous	-
17	307980		Glide, Rear		Appelez-nous	-
17	WP308685		Screw (2)   (Replaces: 3393008)			Immediately	$ 7.87
18	327887		Drawer, Utility		Appelez-nous	-
19	3169423		Panel Drawer (almond)		Appelez-nous	-
19	3169422		Panel Drawer (white)		Appelez-nous	-
19	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 7.57
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	3149257		Glide, Front (2)		Appelez-nous	-
21	3169473		Handle, Drawer (white)		Appelez-nous	-
21	3169472		Handle, Drawer (almond)		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
26	3169420		Bracket, Rail (2)		Appelez-nous	-
28	3149255		Rail, Slide (r.h.)		Appelez-nous	-
28	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-
28	307748		Rail, Slide (screw (2))		Appelez-nous	-
