Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7655002 Harness Mc Comp Appelez-nous -
2 D7790501 Support Drain Pan Appelez-nous -
3 YB8358601 Bale Strap Appelez-nous -
4 D7835501 Support M.c. Appelez-nous -
5 M0211530 Screw Appelez-nous -
6 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

7 B5742601 Blade, Fan Appelez-nous -
8 A3072001 Sleeve K Appelez-nous -
9 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 7.55

10 A9008301 Felt Appelez-nous -
12 C8982101 Bracket, Cond Motor Appelez-nous -
14 D7790601 Drain Pan Appelez-nous -
17 4007A Drier   (Replaces: B2150502) In-Stock Immediately $ 15.05

18 D7656601 Motor, Condenser Appelez-nous -
19 10129306 Timer Defrost Appelez-nous -
20 D7653602 Compressor Appelez-nous -
21 A3140801 Clip K Appelez-nous -
22 D7691002 Cond. Fan Shrd Appelez-nous -
23 D7752701 Bracket, Timer Appelez-nous -
25 M0221332 Screw, Shoulder Appelez-nous -
26 M0223803 Screw Appelez-nous -
27 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

28 M0218118 Screw Appelez-nous -
30 M0500107 Grommet K Appelez-nous -
31 D7595411 Base Pan - Ptd Appelez-nous -
32 B8346301 Spacer Cond. Appelez-nous -
33 D7654301 Condenser Pntd Appelez-nous -
34 M0293703 Speednut Appelez-nous -
35 M0104002 Clamp-drier Appelez-nous -
36 C8867701 Term Cover K Appelez-nous -
37 B5759604 Gasket Appelez-nous -
38 M0251017 Screw Appelez-nous -
41 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

42 C8948902 Ext. Fan Shroud Appelez-nous -
43 C8962201 Bracket, Washer Appelez-nous -
43 D7695503 Mc Back Appelez-nous -
44 C8964701 Cover, Timer Appelez-nous -
45 M0233844 Screw, T F Appelez-nous -
46 M0105509 Clamp Appelez-nous -
47 M0272803 Lock Washer Appelez-nous -
50 M0219704 Screw Appelez-nous -
51 M0104102 Clip, Cord Special Order $ 8.10


    View Diagram in Separate Window     Print Icon   Print Part List

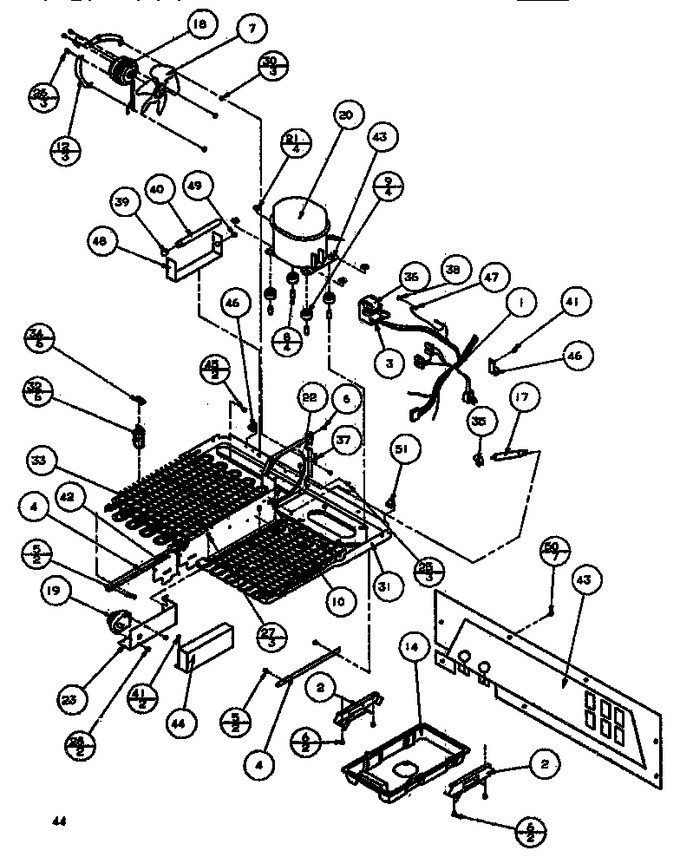

Diagram for TC522Q (BOM: P1135701W)
