SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom & Back


03 - Cabinet Shelving


04 - Compressor


05 - Divider & Controls


06 - Evap Area


07 - Fz Door


08 - Ref Door

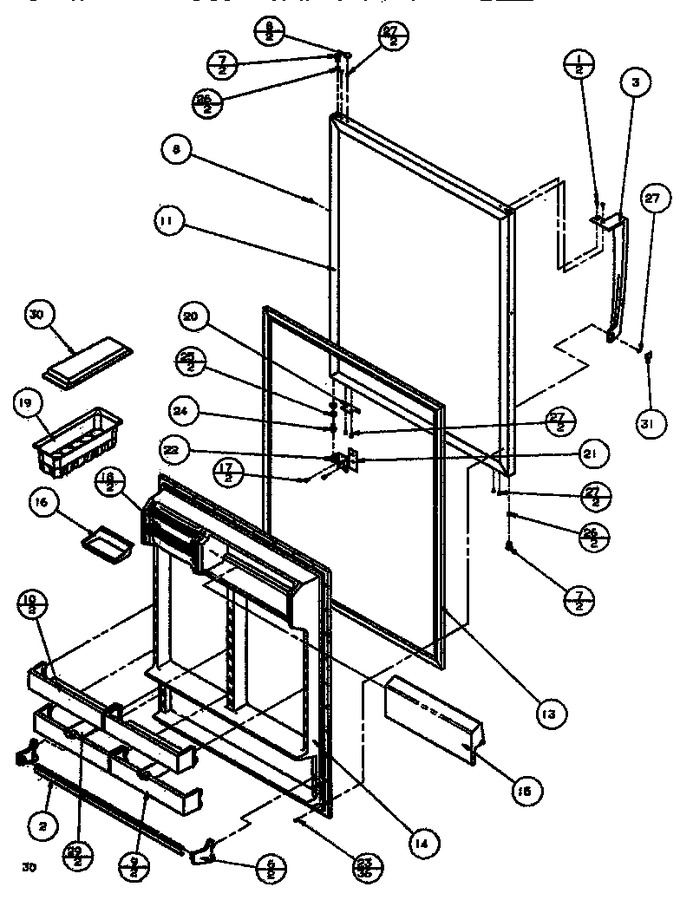

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0221716)			Immediately	$ 8.20
2	C8907228		Retainer Pkg		Appelez-nous	-
3	10253514		Assy, Ref Hndl L		Appelez-nous	-
3	10253510		Handle Assy Ref W		Appelez-nous	-
6	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
6	D7681804		Cap, Pkg Retainer End		Appelez-nous	-
7	10253001		Bushing		Appelez-nous	-
7	10253002		Bushing		Appelez-nous	-
8	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
8	M0310714		Plug		Appelez-nous	-
9	D7574513		Ret Cont. Pkg V		Appelez-nous	-
10	D7565413		Door Shelf V		Appelez-nous	-
11	10344804WQ		Fm-dr As Cfc 11		Appelez-nous	-
11	10344804LQ		Fom-dr As Alm Cfc 11		Appelez-nous	-
13	D7605109		Gasket				$ 31.30
14	D7806303		Inner Door Liner Ref		Appelez-nous	-
15	D7805709		Door Dairy		Appelez-nous	-
16	10310901		Tray, Butter		Appelez-nous	-
17	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
18	D7806405		Container Sec. Ser.		Appelez-nous	-
19	D7695617		Bucket-egg		Appelez-nous	-
20	10266104		Stop Door		Appelez-nous	-
21	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
21	B5744802		Shim		Appelez-nous	-
21	B5744804		Shim, Bottom Hinge		Appelez-nous	-
21	B5744803		Shim		Appelez-nous	-
22	10163613		Bracket, Btm Hinge, White		Appelez-nous	-
22	10163607		Btm Hinge Brkt E		Appelez-nous	-
23	M0219730		Screw				$ 7.65
24	C8814901		Pin, Hinge K		Appelez-nous	-
25	M0274049		Washer		Appelez-nous	-
26	10252901		Bushing		Appelez-nous	-
27	M0210418		Screw		Appelez-nous	-
29	D7806103		Snugger Door		Appelez-nous	-
30	D7805909		Cover, Egg Bucket		Appelez-nous	-
31	10201805		Cover- Hndl Screw Almond		Appelez-nous	-
31	10201801		Cover-handle Screw W		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
