New Model Search:

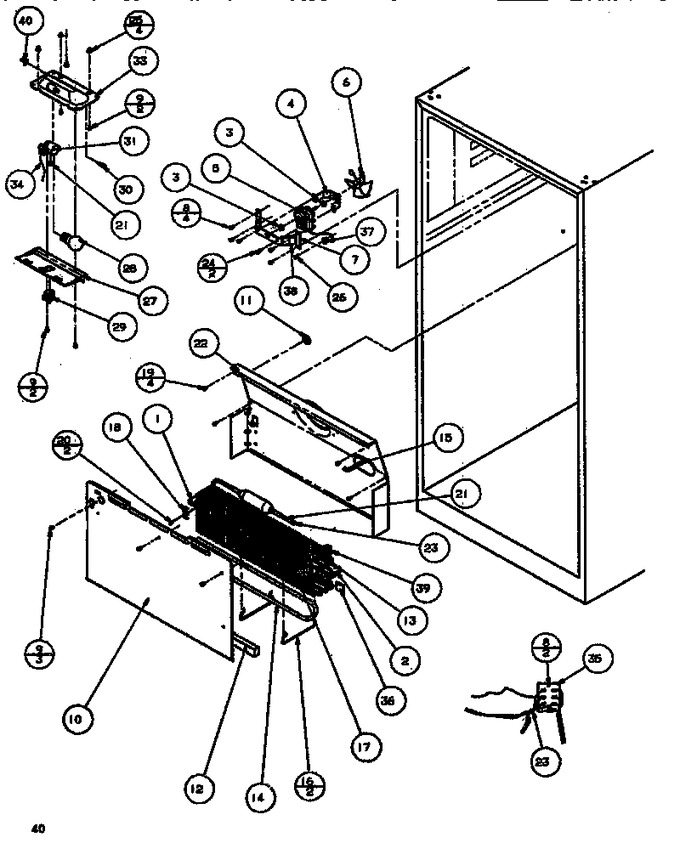

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8322902 | Block Evap. Coil |
|
- | |||||
| 2 | B8361701 | Block Evap Coil |
|
- | |||||
| 3 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 4 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 5 | WP10513804 | Motor, Evap. (Replaces: C8891602) |
|
$ 256.76 | |||||
| 6 | C8927801 | Blade, Evap Fan |
|
- | |||||
| 7 | D7524501 | Brkt Evap Fan Shroud |
|
- | |||||
| 8 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 9 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 10 | 10201702 | Cover, Evaporator |
|
- | |||||
| 12 | A3189320 | Gasket, Foam |
|
- | |||||
| 13 | C8898604 | Thermostat, Defrost |
|
- | |||||
| 14 | D7549704 | Heater Evap |
|
- | |||||
| 15 | D7759001 | Heat Exchanger |
|
- | |||||
| 16 | C8952001 | Clip |
|
- | |||||
| 17 | R0170043 | Evaporator Assembly |
|
- | |||||
| 18 | A3253803 | Clamp |
|
- | |||||
| 19 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 20 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 21 | M0217224 | Screw |
|
- | |||||
| 22 | D7691106 | Shroud Fan |
|
- | |||||
| 23 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 24 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 25 | M0580007 | Grommet, Screw |
|
- | |||||
| 26 | M0251017 | Screw |
|
- | |||||
| 27 | 10073101 | Cover Light |
|
- | |||||
| 28 | W11618980 | Lamp 40 Watt (Replaces: B8363301) |
|
$ 22.42 | |||||
| 29 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 30 | A4539626 | Pop Rivet |
|
- | |||||
| 31 | D7845102 | Socket, Lamp |
|
- | |||||
| 33 | D7863902 | Housing, Light |
|
- | |||||
| 34 | D7383435 | Wire Jumper |
|
- | |||||
| 35 | C8947902 | Board-term |
|
- | |||||
| 36 | B8358502 | Gasket |
|
- | |||||
| 37 | M0272803 | Lock Washer |
|
- | |||||
| 38 | A1047901 | Shim |
|
- | |||||
| 39 | C8898605 | Kit, Defrost Thermostat |
|
- | |||||
| 40 | M0320905 | Terminal Ground A |
|
- | |||||
| NI | 10375101 | Harness Fz Lt. |
|
- |
