Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3169469 End Trim (l.h. Almond) Appelez-nous -
1 WP3390631 End Trim (screw, 10a X 3/8 (2))   (Replaces: 309112) Special Order $ 8.25

1 WP681414 End Trim (screw, 10-16 X 1/2 (4))   (Replaces: 343641) In-Stock Immediately $ 8.47

1 3188992 End Trim (r.h. White) Appelez-nous -
1 3169468 End Trim (r.h. Almond) Appelez-nous -
1 3188993 End Trim (l.h. White) Appelez-nous -
2 3187796 End Cap (l.h. Almond) Appelez-nous -
2 254225 End Cap (screw, 8bt X 1/4 (4)) Appelez-nous -
2 3187795 End Cap (r.h. Almond) Appelez-nous -
2 3187793 End Cap (r.h. Designer White Mdl) Appelez-nous -
2 3187794 End Cap (l.h. Designer White Mdl) Appelez-nous -
4 3187848 Fuse Appelez-nous -
5 WP965173 Timer, Electronic (screw, 8a X 3/8 (2))   (Replaces: 246132) In-Stock Immediately $ 11.87

5 3195183 Timer, Electronic (white) Appelez-nous -
5 3195184 Timer, Electronic (almond) Appelez-nous -
6 3188686 Panel, Control (almond) Appelez-nous -
6 3188685 Panel, Control (designer White) Appelez-nous -
6 WP681414 Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 8.47

6 312604 Panel, Control (screw, 8-18 X 5/8 (4)) Appelez-nous -
7 WP3148952 Switch, Infinite (6`` (2))   (Replaces: 3148952) In-Stock Immediately $ 69.51

7 WP3149400 Switch, Infinite (8`` (2))   (Replaces: 3148954) In-Stock Immediately $ 90.51

7 308119 Switch, Infinite (screw, 8-32 X 1/4 (8)) Appelez-nous -
8 3169457 Indicator Light (2) Appelez-nous -
9 3188723 Knob (4) (almond) Appelez-nous -
9 3188722 Knob (4) (white) Appelez-nous -
10 3187332 Rear Cover Appelez-nous -
10 WP681414 Screw, 10-16 X 1/2 (8)   (Replaces: 343641) In-Stock Immediately $ 8.47

11 313101 Lens, Amber (2) Appelez-nous -
12 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 11.87

12 313608 Shield, Glass (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

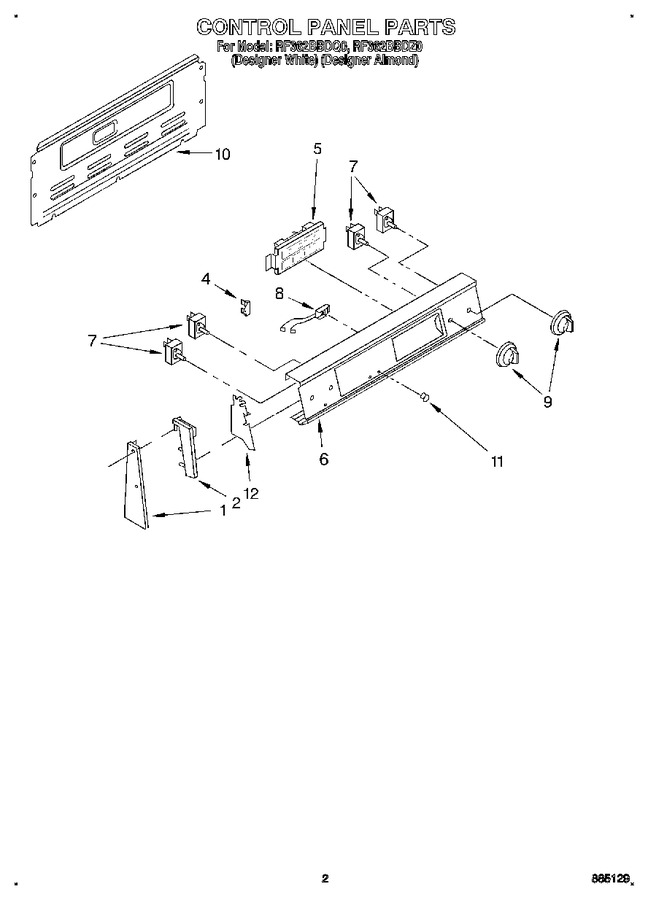

Diagram for RF362BBDQ0
