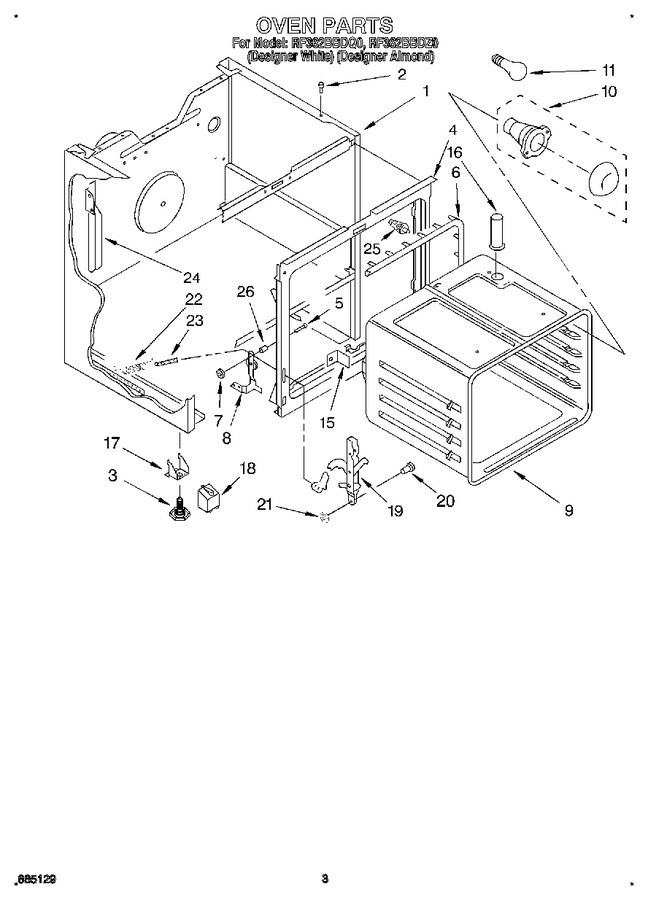

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Unit, Optional


06 - Wiring Harness, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
1	330086		Main Chassis (white)		Appelez-nous	-
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.85
1	330090		Main Chassis (almond)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 80.76
3	3169499		Leg Leveling (4)		Appelez-nous	-
4	3150537		Screw (top)		Appelez-nous	-
4	3176718		Frame Front		Appelez-nous	-
4	WP681414		Screw (sides)   (Replaces: 343641)			Immediately	$ 7.85
5	307985		Pin, Hinge				$ 29.54
6	3169251		Seal, Door		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	3176711		Hinge, L.h.		Appelez-nous	-
8	3176710		Hinge, R.h.		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
9	3150537		Screw		Appelez-nous	-
9	311056		Screw (2)		Appelez-nous	-
9	3176611		Oven (30`` Pyro)		Appelez-nous	-
10	W11594027		Socket, Lamp   (Replaces: 3150505)			Immediately	$ 87.01
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
16	9755804		Vent, Oven   (Replaces: 3169108)				$ 123.68
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	3169418		Support, Foot (2)		Appelez-nous	-
17	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.85
18	3169448		Cover, Foot (2)		Appelez-nous	-
19	3176709		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 13.09
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.16
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
24	313197		Support, R.h. Channel		Appelez-nous	-
24	313196		Support, L.h. Channel		Appelez-nous	-
25	310345		Switch, Oven Light				$ 94.86
26	8273888A		Anti-tip Kit (floor Mount)   (Replaces: 814091)				$ 31.07
26	309111		Snubber, Door (2)		Appelez-nous	-
26	3169093		Insulation, Wrap		Appelez-nous	-
26	3169094		Insulation, Oven Back		Appelez-nous	-
