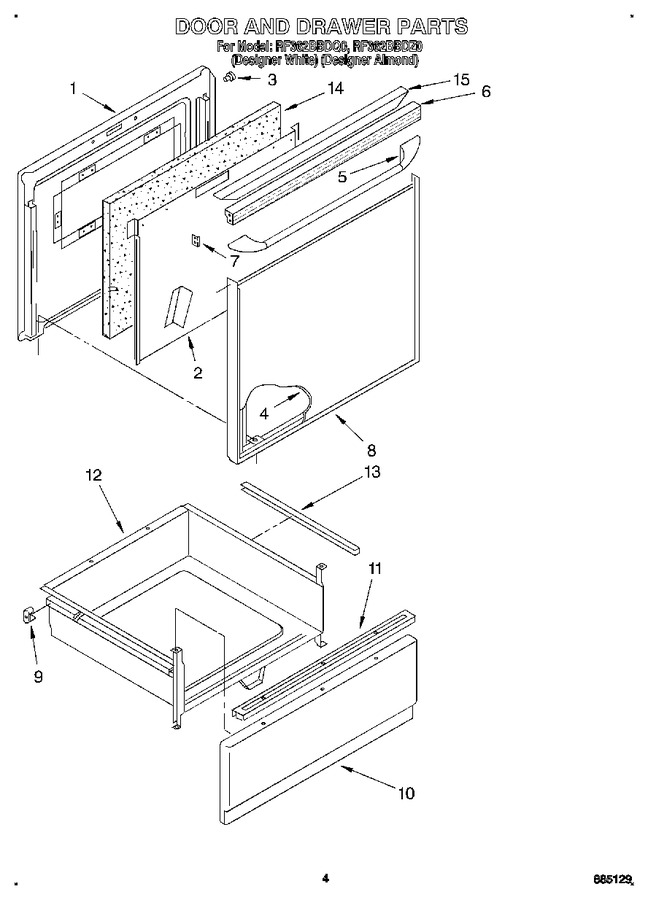

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Oven Door		Appelez-nous	-
1	307748		Screw (2)		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3185647		Screw (4)		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3149051		Panel, Glass (white)		Appelez-nous	-
4	3149052		Panel, Glass (almond)		Appelez-nous	-
5	3188696		Handle, Door (white)		Appelez-nous	-
5	WP999367		Handle, Door (screw (2))   (Replaces: 3169474)				$ 7.86
5	3188697		Handle, Door (almond)		Appelez-nous	-
6	307748		Door Top, Vent (screw (2))		Appelez-nous	-
6	3188693		Door Top, Vent (white)		Appelez-nous	-
6	3188694		Door Top, Vent (almond)		Appelez-nous	-
7	3149333		Screw (4)				$ 5.33
7	3148282		Clip, Handle (2)				$ 8.69
8	3185918		Frame, Door (screw (3))		Appelez-nous	-
8	3188998		Frame, Door (white)		Appelez-nous	-
8	3188403		Frame, Door (screw (4))		Appelez-nous	-
8	3188999		Frame, Door (almond)		Appelez-nous	-
8	3188404		Frame, Door (screw (4))		Appelez-nous	-
9	307980		Glide, Rear (2)		Appelez-nous	-
9	WP308685		Screw, 10-16 X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
10	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 7.57
10	3169423		Panel Drawer (almond)		Appelez-nous	-
10	3169422		Panel Drawer (white)		Appelez-nous	-
11	3169473		Handle, Drawer (white)		Appelez-nous	-
11	3169472		Handle, Drawer (almond)		Appelez-nous	-
12	327887		Drawer, Utility		Appelez-nous	-
13	309329		Protector (2)		Appelez-nous	-
14	3147951		Insulation		Appelez-nous	-
15	3188400		Cap, Door Top (almond)		Appelez-nous	-
15	3188399		Cap, Door Top (screw)		Appelez-nous	-
15	3189002		Cap, Door Top (almond Screw, (2))		Appelez-nous	-
15	3189001		Cap, Door Top (white)		Appelez-nous	-
