Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10925405L Assy Ref Dr Fm Appelez-nous -
12 10925613L Assy, Fz Dr Fm (alm) Appelez-nous -
21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

22 M0219730 Screw Special Order $ 7.65

31 M0219730 Screw Special Order $ 7.65

42 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
52 10447102 Stop, Door Appelez-nous -
61 10447102 Stop, Door Appelez-nous -
62 10456804 Gasket,fz Dr(white) Appelez-nous -
63 10961001 Bushing, Door (wht) Appelez-nous -
72 10415501 Liner, Frz Dr Appelez-nous -
91 WP12550111Q Gasket,ref Dr(white)   (Replaces: 10456803) Special Order $ 178.50

92 M0310730 Plug Button (almond) Appelez-nous -
102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

121 10440805 Liner-ref Door Appelez-nous -
123 M0310338 Plug Button Almond Appelez-nous -
132 10202001 Clip, Retainer Appelez-nous -
191 M0310730 Plug Button (almond) Appelez-nous -
211 10202001 Clip, Retainer Appelez-nous -
8003 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

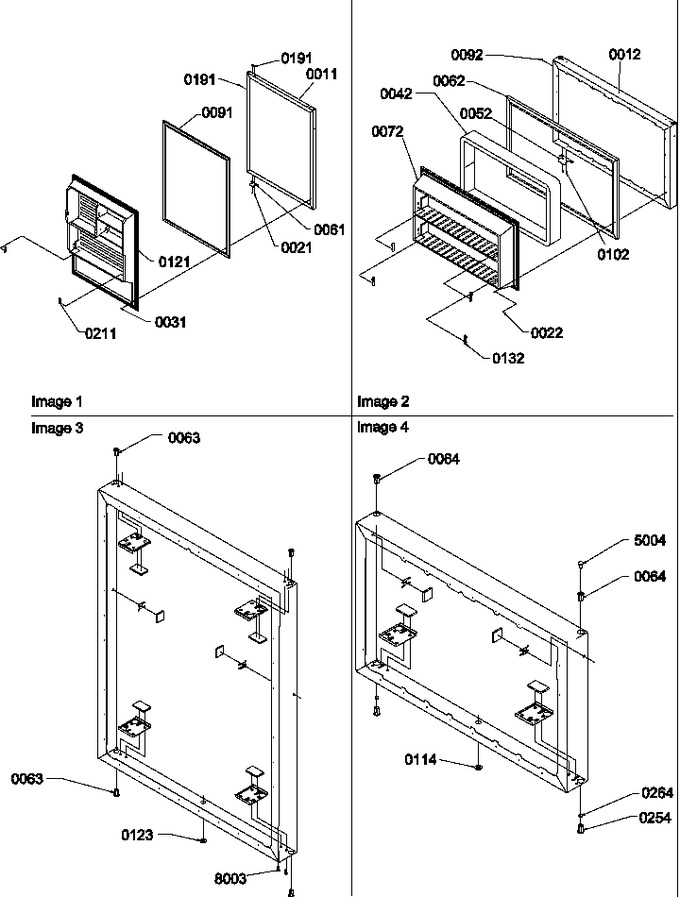

Diagram for TH21TL (BOM: P1301802W L)
