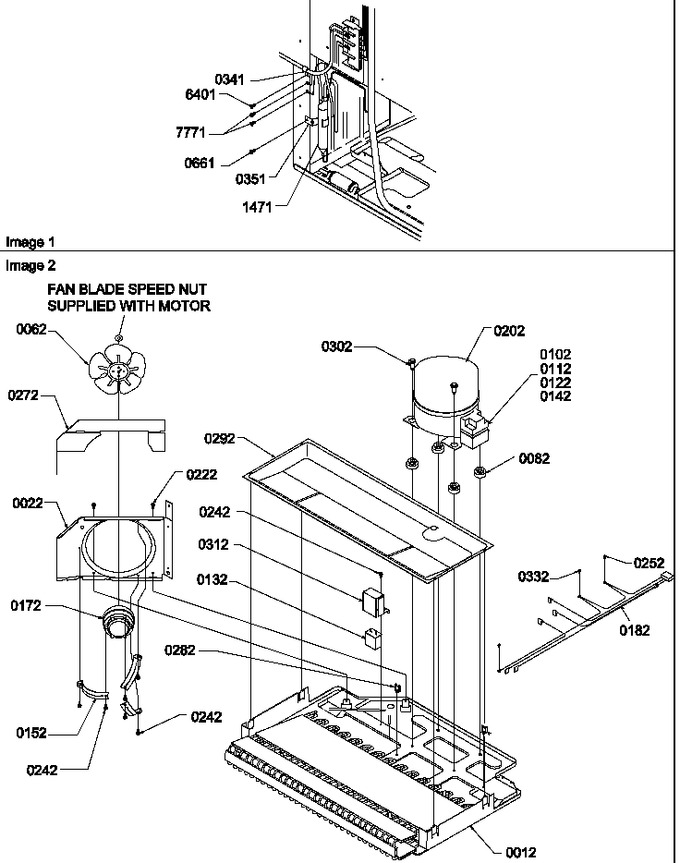

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481210		Assy, Cond Pan		Appelez-nous	-
22	10426910		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
102	YB8358601		Bale Strap		Appelez-nous	-
112	10377017		Overload		Appelez-nous	-
122	WP10097204		Relay-ptc   (Replaces: 10097204)				$ 137.72
132	WPW10662129		Capacitor   (Replaces: C8931607)			Immediately	$ 58.86
142	C8960801		Term Cover		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
182	10705802		Harness, Mach Comp		Appelez-nous	-
202	W10160407		Compressor   (Replaces: 10927202)				$ 629.92
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
242	M0223803		Screw		Appelez-nous	-
252	M0253916		Screw		Appelez-nous	-
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427402		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
312	10266402		Shield, Capacitor		Appelez-nous	-
332	WP489399		Screw   (Replaces: M0232903)				$ 7.30
341	M0103904		Clamp, Speed		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
661	M0227217		Screw, Sm		Appelez-nous	-
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7771	M0232317		Screw		Appelez-nous	-
