Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 Y00000000 See Note Control Assy -- (see Image 3 For Piece Parts) Appelez-nous -
13 12035101 Housing, Control Appelez-nous -
22 10476401 Insert-drain Blk Appelez-nous -
23 10439601 Rack, Control Appelez-nous -
32 10996101 Block-drain Appelez-nous -
33 10442601 Pinion, Control Appelez-nous -
41 Y00000000 See Note Drain Block Assy -- (see Image 2 For Piece Parts) Appelez-nous -
42 12035216 Ref Top- E Ct Appelez-nous -
43 R0161072 Assy, Damper Control Appelez-nous -
52 10573504 Harness, Mullion Appelez-nous -
53 R0168027 Timer-defrost   (Replaces: 10428601) In-Stock Immediately $ 159.86

62 D7714406 Socket, Angle Appelez-nous -
63 R0161075 Assy, Frz Control Appelez-nous -
71 Y00000000 See Note Mk Shelf Assy -- (see Pages 12 & 13 Image 1 For Piece Parts) Appelez-nous -
73 10442801 Insert,damper Appelez-nous -
81 10480715 Spl Prf Shlf Assy Appelez-nous -
83 10442901 Insulation, Damper Appelez-nous -
91 10698539 Assy, Crisp Frame Appelez-nous -
93 M0350201 Switch, St Appelez-nous -
101 B8386613 Gasket Appelez-nous -
103 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

131 Y10440002 Shelf, Freezer Wire Appelez-nous -
132 10435913 Tray, Drip Appelez-nous -
133 10673602 Insulation, Cap Appelez-nous -
142 10450833 Membrane, Breaker Appelez-nous -
143 10565101 Shield, Wire Appelez-nous -
151 10543602 Heater, Mullion Appelez-nous -
152 10995002 Freezer Bottom Appelez-nous -
161 10433344 L Center Mull-pnt Appelez-nous -
162 10453001 Cap, Switch Appelez-nous -
172 10565401 Knob, Control Appelez-nous -
182 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

183 A3012543 Tube-plastic Appelez-nous -
192 M0224128 Screw Appelez-nous -
202 10995201 Insert-mk Air Sply Appelez-nous -
212 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

232 10435512 Frame, Ref Top Brk Appelez-nous -
302 10508701 Shield, Refrig. Light Appelez-nous -
381 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

452 10594901 Gasket, Mk Air Supply Appelez-nous -
542 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

561 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

911 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

941 Y10430111 Pan-crisper Appelez-nous -
1021 10440404 Duct, Frz Air Appelez-nous -
1161 10642103 Cover, Mk Air Sply Appelez-nous -
1171 10479401 Control, Mt. Kpr. Air Sup Appelez-nous -
1181 10479103 Tunnel, Mt Kpr Appelez-nous -
1391 10433611 Plate, Center Tap Appelez-nous -
1401 B0523584 Insulation Per Ft. Appelez-nous -
1431 M0310730 Plug Button (almond) Appelez-nous -
1451 M0311602 Plug, Button (white) Appelez-nous -
1641 M0253916 Screw Appelez-nous -
1801 10779602 Insul. Air Duct Appelez-nous -
3621 M0211520 Screw - Sm Appelez-nous -
3661 10565701 Insert, Mk Control Appelez-nous -
4051 10852401 Gasket, Mt Kpr Duct Appelez-nous -
6501 10772301 Insulation Appelez-nous -
NI 10573401 Harness, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

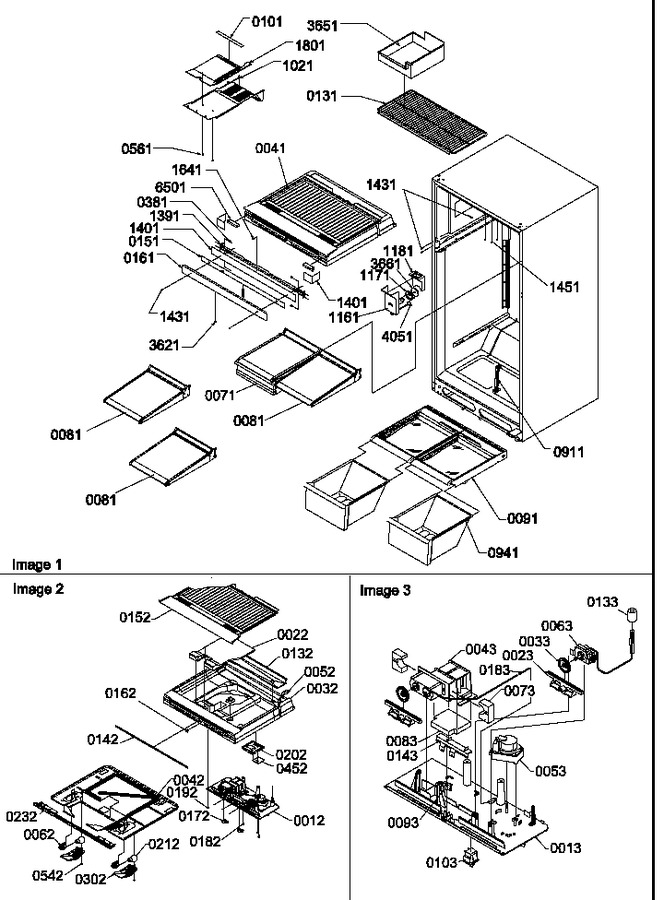

Diagram for TH21TL (BOM: P1301802W L)
