01 - 8 Cube Compact Ice Maker


02 - Add-on Ice Maker


03 - Cabinet Back


04 - Cabinet Bottom


05 - Cabinet Shelving


06 - Cabinet Shelving


07 - Compressor Compartment


08 - Control Assy


09 - Divider Block


10 - Evap Assy


11 - Factory Installed Ice Maker


12 - Fz Door


13 - Ref Door

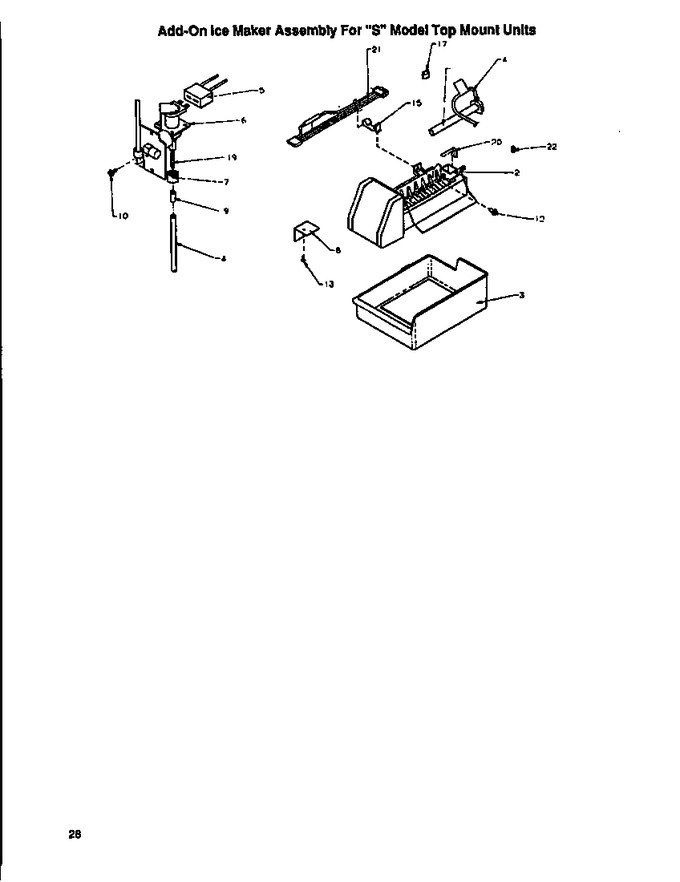

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 119.86
2	D7824706Q		Ice Maker   (Replaces: D7824702)			Immediately	$ 167.35
3	WP67001255		Use 10476207   (Replaces: 10476201)				$ 213.23
4	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
5	10525901		Harness, Water Valve				$ 8.02
6	W10833899		Kit, Water Valve   (Replaces: 10524601)			Immediately	$ 253.55
7	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
8	B8391801		Bracket, I/m		Appelez-nous	-
9	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
10	681390		Screw   (Replaces: M0251015)				$ 13.71
12	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
13	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
15	10526701		Clamp, Wire		Appelez-nous	-
17	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
19	A1055101		Spring, Antikink		Appelez-nous	-
20	B5720301		Clip		Appelez-nous	-
21	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
22	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
NI	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
NI	P1165801W		Ic6 Complete Icemaker		Appelez-nous	-
NI	A3036901		Label Warranty		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3124301		Plug		Appelez-nous	-
NI	10527001		Instructions-installation		Appelez-nous	-
NI	10549601		Label, Caution (ice Maker)		Appelez-nous	-
NI	M0108001		Clamp, Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
